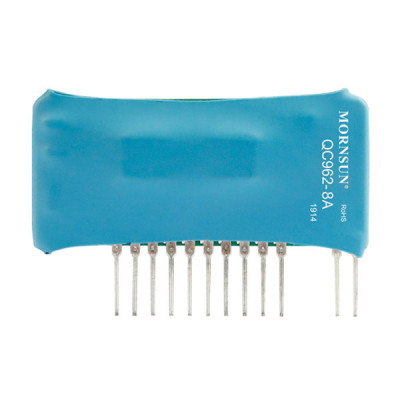

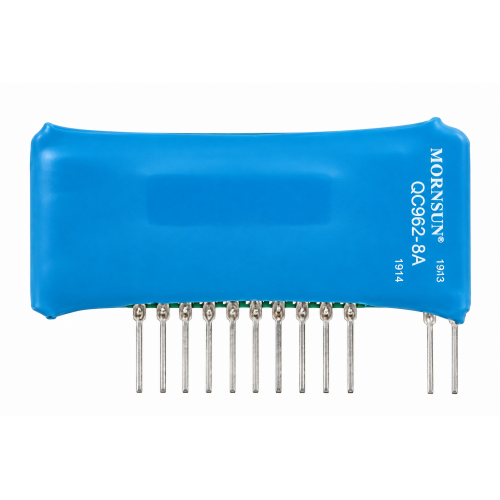

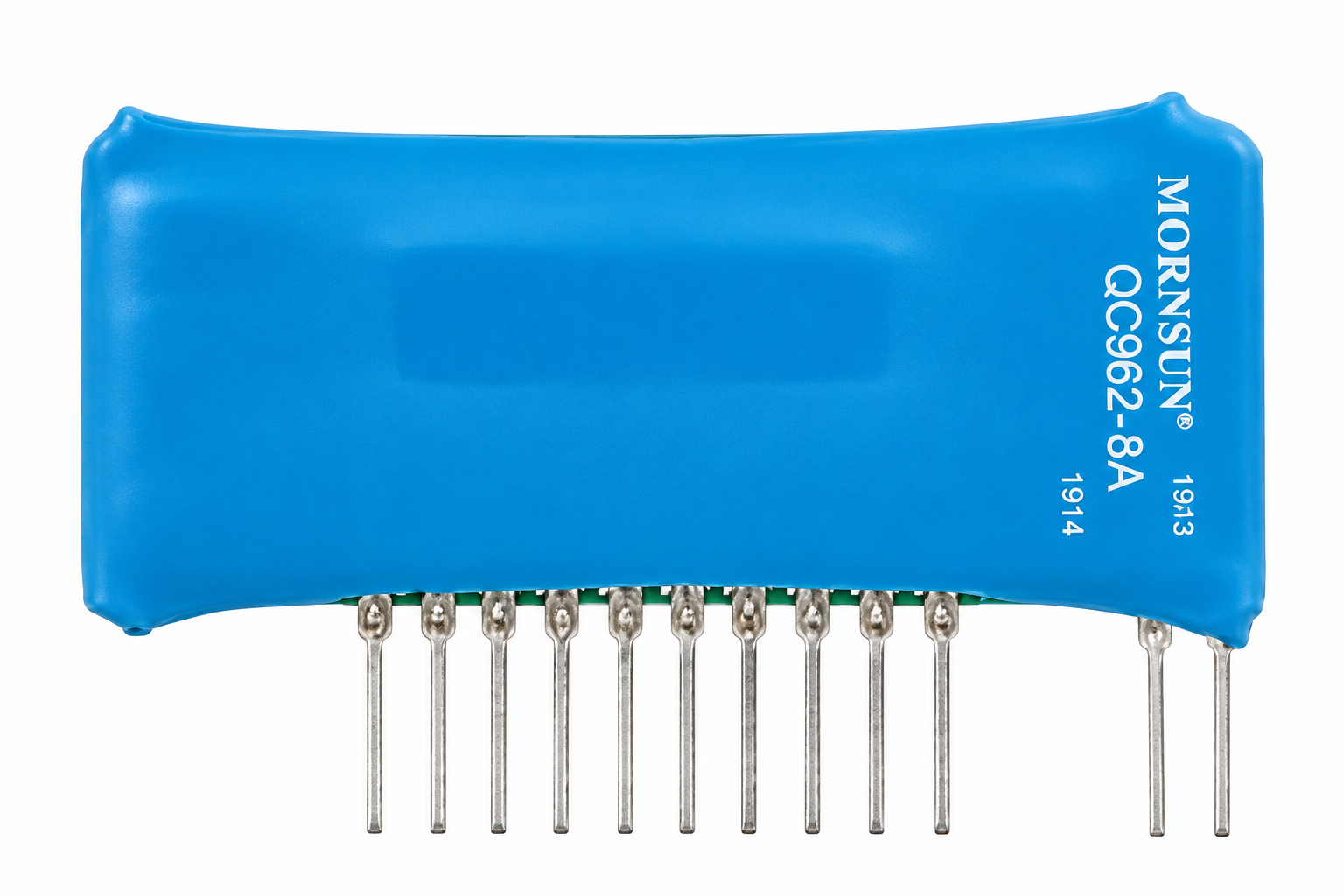

Mornsun QC962-8A Hybrid Integrated IGBT Driver Module

Mornsun QC962-8A Hybrid Integrated IGBT Driver Module

Mornsun QC962-8A hybrid integrated IGBT driver with isolated gate drive, ±8 A peak output and short-circuit protection.

The Mornsun QC962-8A is a hybrid integrated IGBT driver that takes a controller signal and provides an isolated, amplified gate-drive signal. Its optocoupler separates the input and output, with a 3750 VAC isolation test rating. The module delivers peak output current of +8 A for turn-on and -8 A for turn-off.

CMOS- and TTL-compatible inputs support common controller signals. Built-in overcurrent detection can trigger a fault output, while soft turn-off helps manage the IGBT during a fault. The adjustable short-circuit detection lets designers set the detection delay for their circuit.

Use this isolated IGBT gate driver in general inverter designs, AC servo drive systems, UPS equipment and electric welding machines. Its integrated drive and fault functions support a compact control stage for power conversion systems.

DNA offers Mornsun components for engineers and electronics buyers across India. Browse our range of Motor Driver Modules to find parts for your design or repair needs. Check other Motor Driver Modules that we have in stock

If you cannot find the part you need, contact DNA for import support and retail or bulk orders. We can also help you source related items such as sensors, capacitors, development boards, SMPS and crystals. Contact Us

Features of Mornsun QC962-8A Hybrid Integrated IGBT Driver Module

• Optocoupler provides input-to-output isolation
• CMOS- and TTL-compatible input supports controller signals
• Built-in bipolar power supply
• Short-circuit protection provides a fault output
• Soft turn-off and reset timer support fault response
• Adjustable detection delay and overcurrent threshold

Specifications of Mornsun QC962-8A Hybrid Integrated IGBT Driver Module

• Operating supply voltage, VCC: 14 V minimum, 15 V typical DC
• Operating supply voltage, VEE: -7 V minimum, -10 V typical DC
• Maximum supply input voltage: VCC 18 V, VEE -15 V
• Switching frequency: 0–40 kHz, 20 kHz typical with Rg = 5 Ω
• Peak output current: +8 A turn-on and -8 A turn-off at 2 µs pulse width
• Input-to-output isolation test voltage: 3750 VAC at 50/60 Hz for 1 minute
• Operating temperature: -40 °C to +70 °C
• Maximum outline dimensions: 49.00 mm × 25.00 mm

Applications of Mornsun QC962-8A Hybrid Integrated IGBT Driver Module

• General inverters
• AC servo drive systems
• Uninterruptible power supplies (UPS)
• Electric welding machines

Related Links for Mornsun QC962-8A Hybrid Integrated IGBT Driver Module

• Mornsun QC962-8A Hybrid Integrated IGBT Driver Module Datasheet

• Other Products from Motor Driver Modules Category

Package Includes

• 1 X Mornsun QC962-8A Hybrid Integrated IGBT Driver Module
