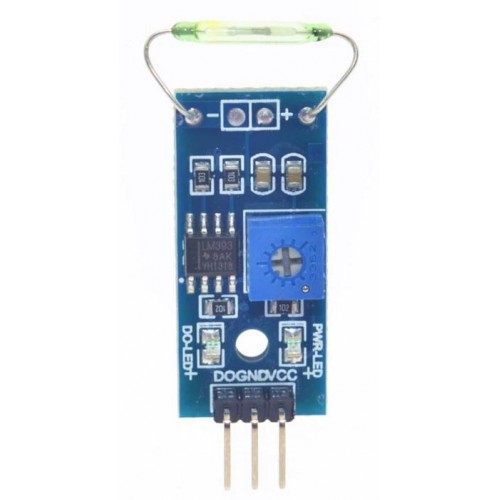

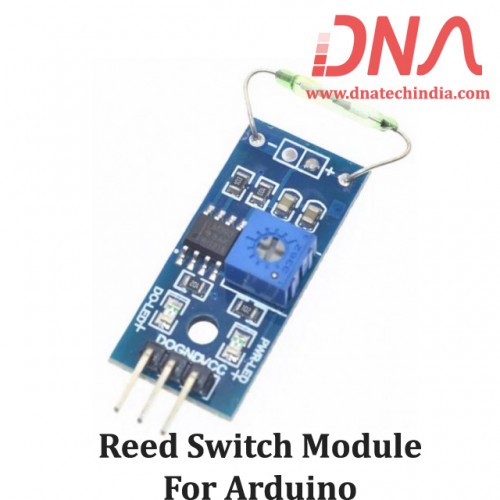

REED SWITCH MODULE FOR ARDUINO

  • Stock: 8
  • SKU: 2010 | DAB015
  • Rs. 80.24 (inc GST)
    Rs.68.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

REED SWITCH MODULE FOR ARDUINO

Reed is dry reed short, is a kind of passive electronic switch contact element has a simple structure, small size and easy to control, etc.,

The shell is generally a sealed glass tubes are installed there are two flexible iron reed panels, also called metal rhodium has a filling of inert gas. Normally, two glass tubes made of special materials reeds are separated. When a magnetic substance near the glass tube, under the action of magnetic field lines, the two reed pipe is magnetized and attract each other contacts, the reed will pull together to make a circuit of the connected node communication. After the disappearance of the external magnetic force, two reeds separately because of their elasticity, the line also disconnected. Therefore, as a signal to control the use of magnetic field lines switching devices, the reed can be used as a sensor for counting, spacing, and so on (in the security system is mainly used for door sensor, window magnetic production), but also It is widely used in a variety of communication devices. In practice, usually with a permanent magnet control the two metal sheets turned on or not, it is also known as "magnetron."

We have Various sizes of Sensor Modules. Check out our complete collection of Sensor Modules


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of Reed Switch Module For Arduino

  • Imported normally open reed
  • The comparator output signals clean, good waveform, driving ability, than 15mA.
  • The working voltage of 3.3V-5V
  • The output form : digital switching output (0 and 1)
  • A fixed bolt hole for easy installation
  • Small PCB board size : 3.2cm x 1.4cm
  • Using a wide voltage comparator LM393
