Description

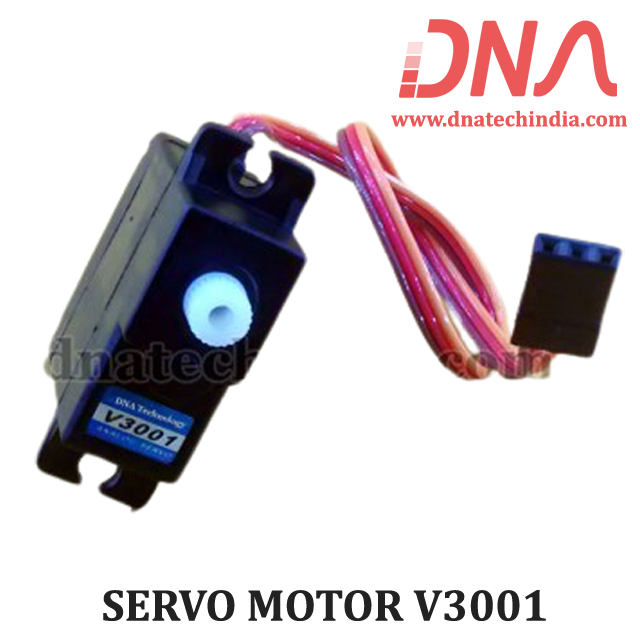

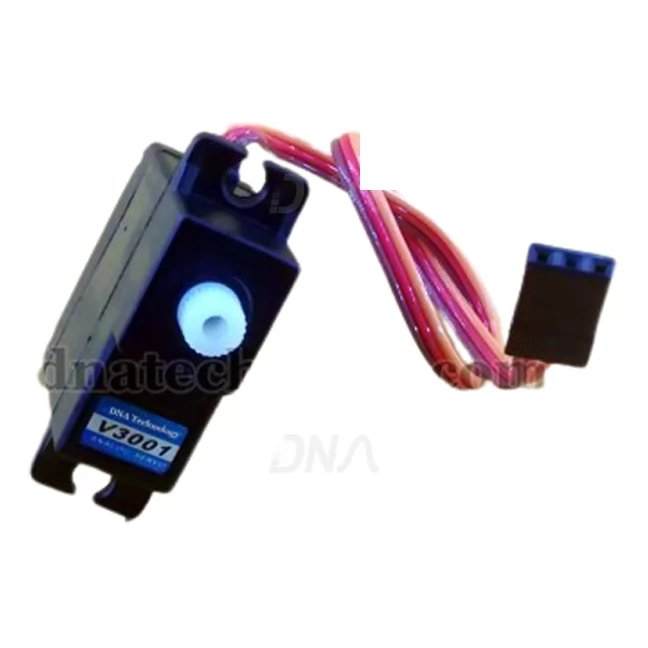

V3001A Servo Motor High Torque Plastic Geared

V3001A Servo Motor offers precise control, 4.8-6.0V operating voltage, and 2.3-2.5kg*cm stall torque.

The V3001A Servo Motor is an essential component for robotics and CNC applications. With its high torque capabilities, it operates efficiently between 4.8V and 6.0V. This servo motor provides precise control of angular position and speed, making it ideal for automated manufacturing. The V3001A Servo Motor features a dead band width of 4ms and a temperature range of -20°C to 60°C, ensuring reliability in various environments. Its compact size of 28.5x13.3x30.6mm makes it suitable for tight spaces.

In the world of servo motors, the V3001A stands out for its performance. It offers an operating speed of 0.16sec for 60 degrees at 4.8V and 0.14sec at 6.0V. The V3001A Servo Motor is designed for applications requiring precise movement, such as robotics and CNC machinery. Choose this motor for consistent and accurate performance in your projects.

Explore the range of high-quality Servo Motors from DNA. The V3001A Servo Motor excels in precision control for robotics and CNC machinery. Check other Servo Motors that we have in stock.

Are you searching for specific electronic components? DNA can help. If you can't find certain parts, we can import them for you. We also support retail and bulk orders. Check out items like Microcontrollers, Nextion Displays, LCDs, Programmers, Crystals, and Resistors. Contact Us.

Features of V3001A Servo Motor High Torque Plastic Geared

Operating Voltage: 4.8VDC-6.0VDC
Operating Speed: 0.16sec/60degree (4.8V)
Stall Torque: 2.3kg*cm (4.8V)
Temperature Range: -20°C to 60°C
Dead Band Width: 4ms
Dimension: 28.5X13.3X30.6mm
Weight: 20g
Gear: Plastic
Cable Length: 18cm

Specification of V3001A Servo Motor High Torque Plastic Geared

Operating Voltage: 4.8VDC-6.0VDC
Stall Torque: 2.3kg*cm (4.8V), 2.5kg*cm (6.0V)
Operating Speed: 0.16sec/60degree (4.8V), 0.14sec/60degree (6.0V)
Temperature Range: -20°C to 60°C
Dead Band Width: 4ms
Dimension: 28.5X13.3X30.6mm
Weight: 20g

Applications of V3001A Servo Motor High Torque Plastic Geared

Robotics
CNC machinery
Automated manufacturing

Package Includes

1 X V3001A Servo Motor High Torque Plastic Geared
