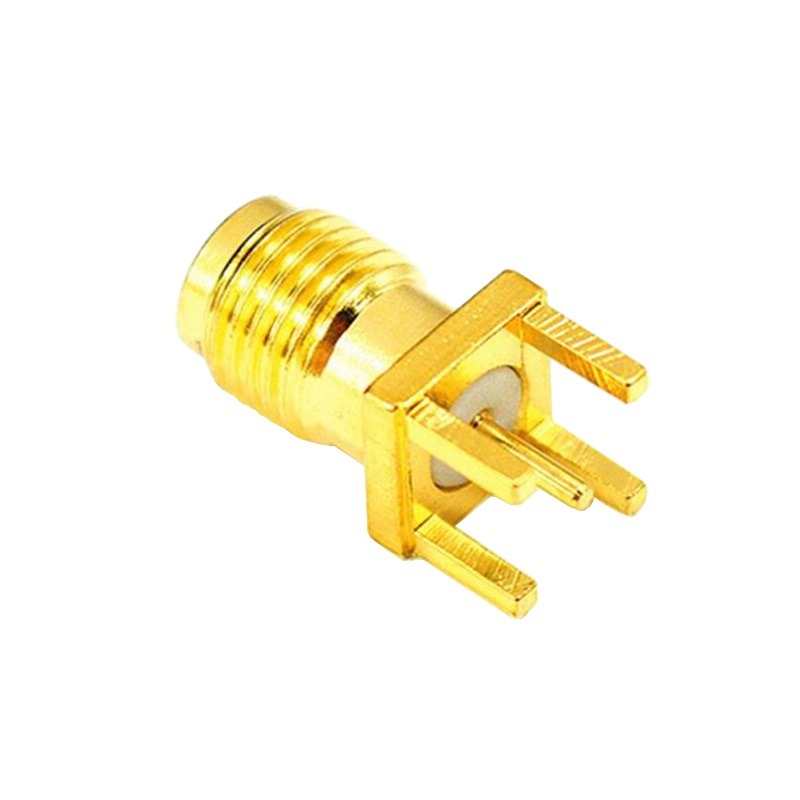

• SMA FEMALE CONNECTOR STRAIGHT(ST)

Product Images are shown for illustrative purposes only and may differ from actual product.

SMA FEMALE CONNECTOR STRAIGHT(ST)

  • Stock: 67
  • SKU: 3785 | DAG395
  • Rs. 22.07 (inc GST)
    Rs.18.70 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

SMA FEMALE CONNECTOR STRAIGHT(ST)

SMA Female Straight Edge PCB Mount Connector

These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.

DNA solutions, Nashik has various types of Power Modules's. Check out our complete collection of  Power Modules's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of SMA FEMALE CONNECTOR STRAIGHT(ST)

  • Excellent electrical performance up to 18GHz with low reflection.
  • SMA Connector, Female, Straight, PCB Connector, Plate Edge Mount, Copper, Gold Plating.
  • Thread type coupling mechanism ensure small loss and high security in compact design.

Mechanical Characteristics

  • Coupling: 1/4-36 thread
  • Contact Retention: 15 in-lbs min.
  • Coupling nut torque: 30 in-lbs. min.
  • Durability(mating) 500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

  • Temperature Range: -55C ~ +155C
  • Vibration: MIL-STD-202 Meth.204
  • Corrosion resistance: MIL-STD-202 Meth. 101

Electrical Characteristics

  • Impedance 50 ohm
  • Frequency Range: 0~6 GHz
  • VSWR: Straight type 1.3max / R/A type 1.5max
  • Center Contact Resistance 6.0 m (Milliohms max.)
  • Outer Contact Resistance 2.0 m (Milliohms max.)
  • Insulation Resistance 5 x 10 m (Meg ohms min.)
  • Dielectric Withstanding Voltage: 1000 V rms min for RG142, RG405
  • 750 V rms min. for RG316, RG402
  • 500v rms min. for RG178
  • Working Voltage:500 V rms max. for RG142, RG405
  • 375 V rms  max. for RG316, RG402
  • 170 V rms max. for RG178

Specifications

  • Orientation: Straight
  • Mounting Type: PCB Mount
  • Mounting Feature: Plate Edge Mount
  • Function: Other
  • Gender: Female
  • Polarity: Standard
  • Body Material: Copper
  • Body Plating :Gold Plating
  • Impedance:50 ohms
  • Shield Termination: NA

Appliance

  • Aerospace and Defense: Hand-held field Device and Instrumentation
  • Telecommunications: Wireless Base Stations, Cellular Mobile System
  • Data/Communications: Wifi, WiMAX
  • Medical: Instrumentation
  • Commercial Vehicle: Bluetooth and GPS
  • Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Package Includes

1 x SMA FEMALE CONNECTOR STRAIGHT(ST)

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
