Product Images are shown for illustrative purposes only and may differ from actual product.

SMCJ40A 64.5V Clamp 23.3A Ipp Tvs Diode

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • SKU: 8867 | DAI203

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 11.33 (inc GST)
    Rs.9.60 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

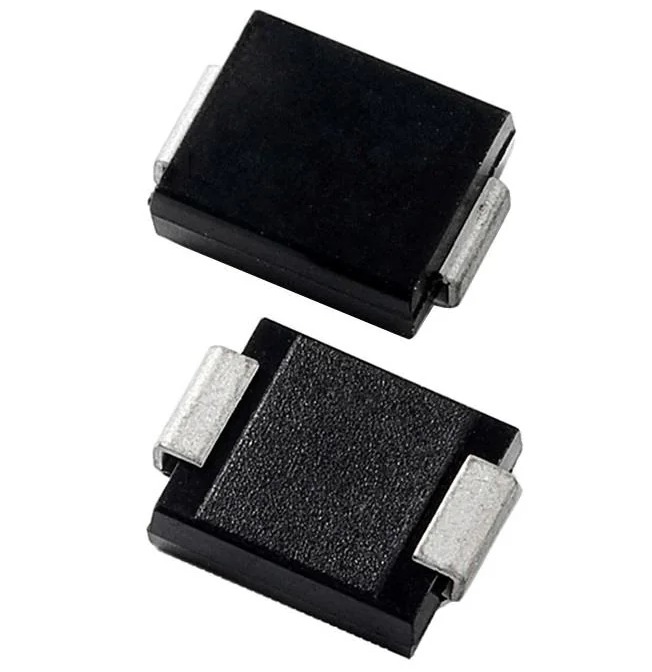

SMCJ40A 64.5V Clamp 23.3A Ipp TVS Diode

SMCJ40A TVS Diode for surge protection with 64.5V clamping voltage and 23.3A peak pulse current.

The SMCJ40A 64.5V Clamp 23.3A Ipp TVS Diode is designed for protecting sensitive electronics from voltage transients. With a clamping voltage of 64.5V and a peak pulse current of 23.3A, this diode serves well in industrial, automotive, and power supply applications. Its low leakage current keeps your devices safe without draining power.
This diode is housed in a DO-214AB package, making it suitable for surface mount applications. The SMCJ40A's breakdown voltage ranges from 44.4V to 49.1V, ensuring effective surge protection. By integrating the SMCJ40A into your designs, you can enhance the longevity and reliability of your electronic devices.
For those seeking robust surge protection solutions, the SMCJ40A 64.5V Clamp 23.3A Ipp TVS Diode is a reliable choice. It is ideal for various applications, including industrial electronics, automotive surge protection, and power supplies. Explore the benefits of integrating this component into your projects today.
At DNA, we provide a comprehensive range of products from leading manufacturers in the Diodes & Transistors category. Explore our offerings, including the SMCJ40A, to elevate your electronic designs. Check other Diodes & Transistors that we have in stock.
If you need specific electronic components, reach out to us at DNA. We can help you find parts like Sensors, Development Modules, and more. We also offer import services for hard-to-find items. Contact Us.

Features of SMCJ40A 64.5V Clamp 23.3A Ipp TVS Diode

  • Peak pulse power dissipation: 1500W (10/1000μs waveform)
  • Clamping voltage: 64.5V
  • Peak pulse current (Ipp): 23.3A
  • Low leakage current
  • DO-214AB (SMCJ) package

Specification of SMCJ40A 64.5V Clamp 23.3A Ipp TVS Diode

  • Stand-off voltage (VR): 40V
  • Breakdown voltage: 44.4V to 49.1V
  • Clamping voltage (VC): 64.5V
  • Peak pulse current: 23.3A
  • Package: DO-214AB (SMCJ)

Applications of SMCJ40A 64.5V Clamp 23.3A Ipp TVS Diode

  • Industrial electronics
  • Automotive surge protection
  • Power supplies and converters
  • Telecommunication equipment

Related Links for SMCJ40A 64.5V Clamp 23.3A Ipp TVS Diode

Package Includes

  • 1 X SMCJ40A 64.5V Clamp 23.3A Ipp TVS Diode
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
