Slide Switch SPDT


Write a review | 1 reviews

  • Stock: 281

    Availability: InStock priceValidUntil: 2026-06-09

  • SKU: 2008 | DAB228

Availability: InStock priceValidUntil: 2026-06-09

  • Rs. 8.99 (inc GST)
    Rs.7.62 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

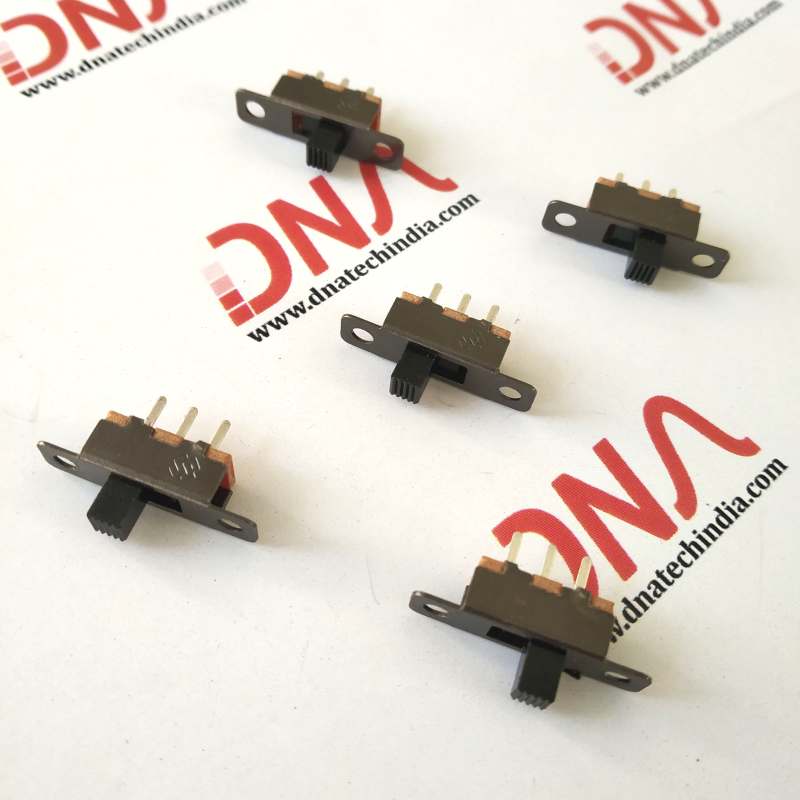

SPDT Slide Switch

3 Pin 2 Way SPDT Slide switch

This is a Single Pole Double Throw (SPDT) Slide switch with 3 terminals and a vertical handle with 2 Positions and ON-ON contact type.
Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights, etc.

Specifications of SPDT Slide Switch

  • Product Name : Slide Switch
  • Model : SS12F15-01
  • Action Type : SPDT
  • Contact Type : ON - ON, 2 Positions
  • Terminal Quantity : 3
  • Working Power : 0.5 Ampere 30 Volt DC
  • Contact Resistance : 30mΩ Max
  • Insulation Resistance : 100mΩ Min at 500V DC
  • Withstand Voltage : AC 500 Volt for 1 min
  • Material(External) : Plastic, Metal

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
