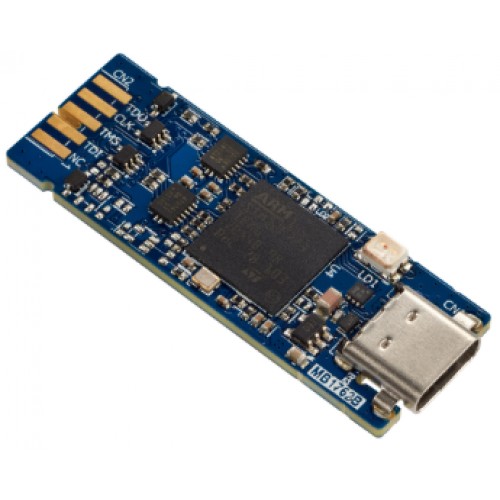

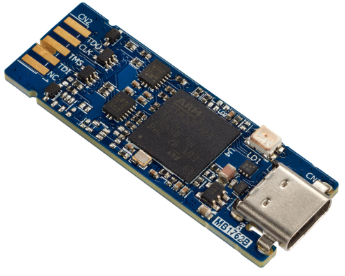

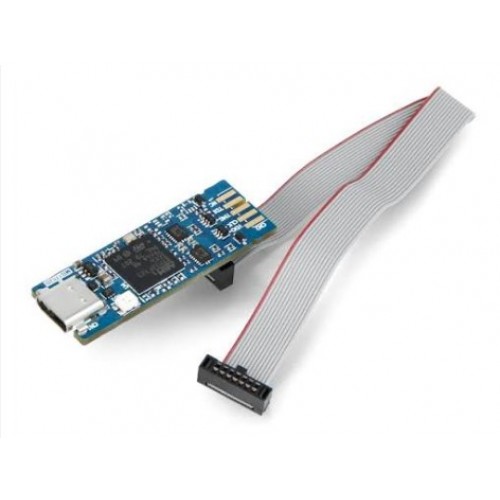

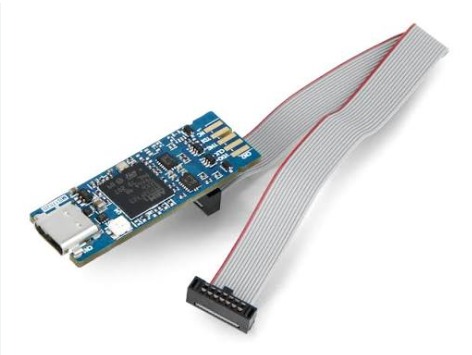

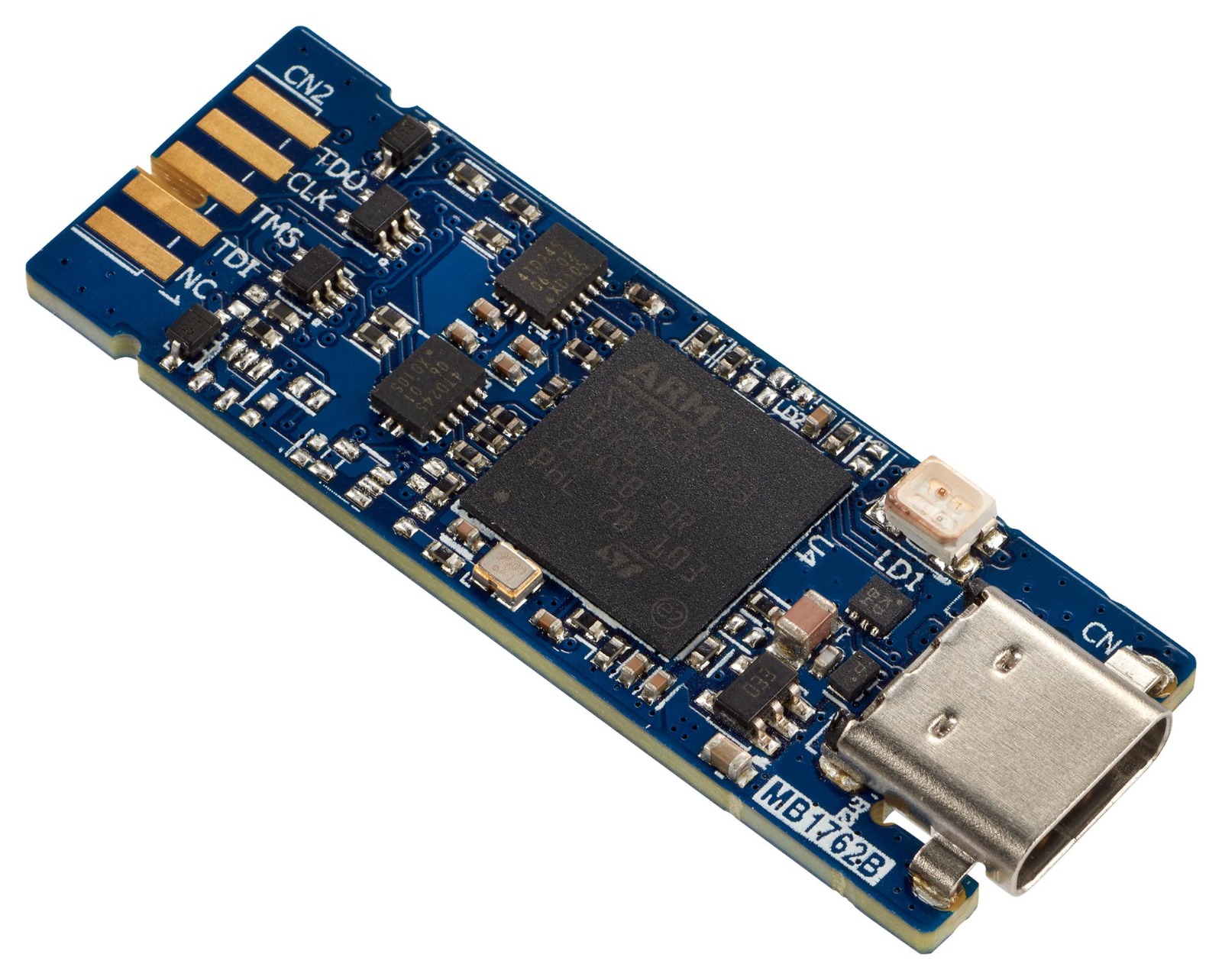

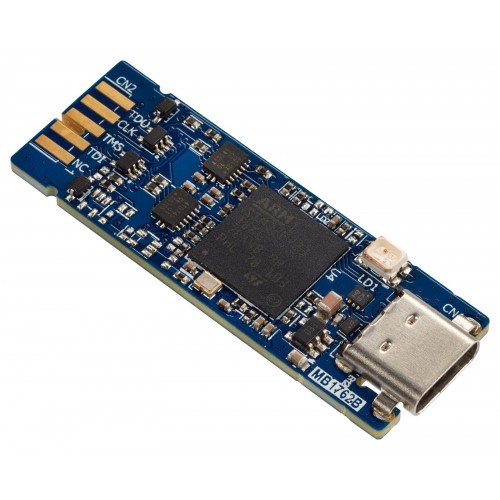

STMicroelectronics STLINK-V3MINIE STM32 Debugger and Programmer Probe

  • Stock: 1

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: ST Microelectronics
  • SKU: 10808 | DAK037

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 3,451.50 (inc GST)
    Rs.2,925.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

STMicroelectronics STLINK-V3MINIE STM32 Debugger and Programmer Probe

STLINK-V3MINIE standalone STM32 debugger and programmer with JTAG up to 21 MHz, SWD/SWV up to 24 MHz and a virtual COM port up to 15 Mbps.

The STMicroelectronics STLINK-V3MINIE is a standalone probe for debugging and programming STM32 microcontrollers on an application board. It connects to the target through JTAG or SWD and supports STM32 in-circuit debugging. A USB Type-C connection powers the probe, while the virtual COM port lets a host PC communicate with the target through one UART.
The probe also supports SWV communication and optional drag-and-drop programming of binary files. Its application voltage range of 1.65 V to 3.60 V supports a range of STM32 target designs. With its USB-powered operation and combined debug and programming functions, it provides a compact tool for development and board-level troubleshooting.
DNA supplies STMicroelectronics tools for electronics development and production. Browse our range of Programmers for STM32 and other programming needs. Check other Programmers that we have in stock
If you cannot find a part, contact DNA for help with sourcing and import support. We support Indian electronics buyers with retail and bulk orders, including related items such as microcontrollers, connectors and sensors. Contact Us

Features of STMicroelectronics STLINK-V3MINIE STM32 Debugger and Programmer Probe

  • Debugs and programs STM32 targets through JTAG or SWD
  • Provides a virtual COM port for target UART communication
  • Runs from USB Type-C power
  • Supports optional drag-and-drop Flash programming of binary files
  • Allows probe firmware updates through USB
  • Uses a bi-color LED to indicate communication

Specifications of STMicroelectronics STLINK-V3MINIE STM32 Debugger and Programmer Probe

  • JTAG communication frequency: Up to 21 MHz
  • SWD and SWV communication frequency: Up to 24 MHz
  • Virtual COM port data rate: Up to 15 Mbps
  • Application voltage support: 1.65 V to 3.60 V
  • USB interface: USB 2.0 high-speed
  • Dimensions: 15 mm × 42 mm
  • Debug connectors: 1.27 mm pitch STDC14 connector and 2.0 mm pitch on-board pads

Applications of STMicroelectronics STLINK-V3MINIE STM32 Debugger and Programmer Probe

  • Debugging and programming STM32 microcontrollers on an application board

Related Links for STMicroelectronics STLINK-V3MINIE STM32 Debugger and Programmer Probe

Package Includes

  • 1 X STMicroelectronics STLINK-V3MINIE STM32 Debugger and Programmer Probe
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
