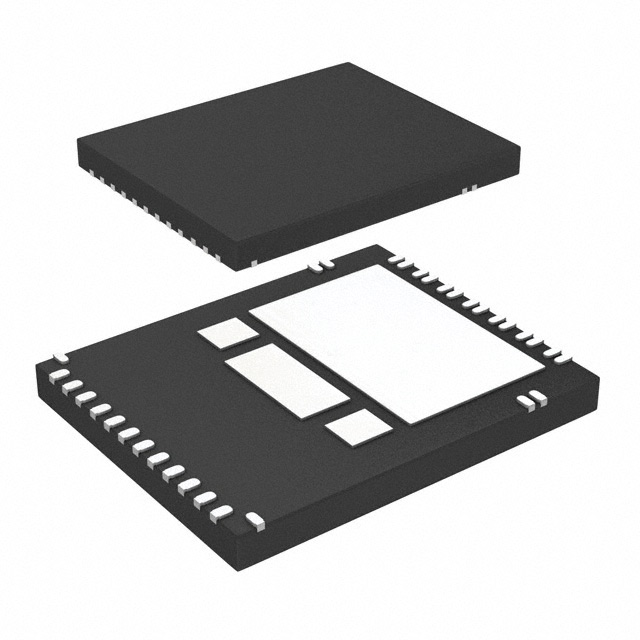

STMICROELECTRONICS ISO8200BQ POWER SWITCH SMD IC

STMICROELECTRONICS ISO8200BQ POWER SWITCH SMD IC

The ISO8200BQ is an octal-channel high-side smart power switch designed for industrial applications requiring galvanic isolation and robust load control. It integrates 8 protected high-side switches capable of driving resistive, inductive, and capacitive loads up to 0.7 A per channel. It includes an SPI interface for diagnostics and control, making it ideal for programmable logic controllers (PLCs) and industrial automation systems. The IC provides galvanic isolation up to 2.5 kV between logic and power stages, enhancing safety. It features overcurrent, overtemperature, and under voltage protection. Housed in a compact SMD package for easy PCB mounting.

DNA solutions, Nashik has various types of Switch IC's. Check out our complete collection of Switch IC's.

• 8-channel galvanically isolated high-side power switch

• SPI interface for diagnostics and control

• 0.7 A output current per channel

• 2.5 kV isolation voltage

• Real-time diagnostic feedback via SPI

Specifications of STMICROELECTRONICS ISO8200BQ POWER SWITCH SMD IC

• Number of Channels: 8 High-side

• Max Output Current/Channel: 0.7 A

• Logic Interface: SPI

• Isolation Voltage: 2500 Vrms

• Supply Voltage: 10.5V to 36V

Applications of STMICROELECTRONICS ISO8200BQ POWER SWITCH SMD IC

• Factory automation and control

• Industrial relay/valve driver circuits

• Smart I/O modules

• Building and energy management systems

Package Includes

      1 x STMICROELECTRONICS ISO8200BQ POWER SWITCH SMD IC
