SZ 7569P Sub Zero 20A Relay Temperature Controller 230V AC


Write a review | 3 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-03-13

  • SKU: 8204 | DAH852

Availability: NotInStock priceValidUntil: 2026-03-13

  • Rs. 1,177.17 (inc GST)
    Rs.997.60 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

SZ 7569P Sub Zero 20A Relay Temperature Controller 230V AC

SZ 7569P Sub Zero 20A Relay Temperature Controller 230V AC

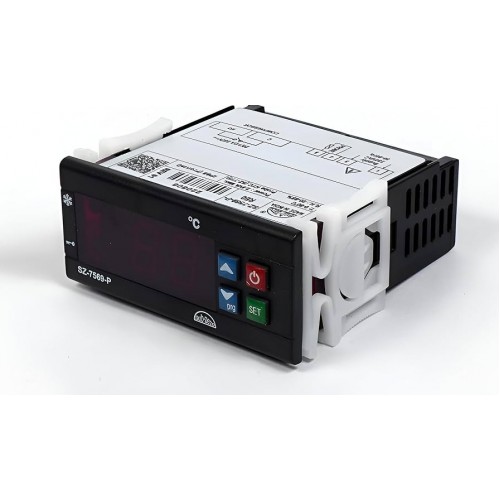

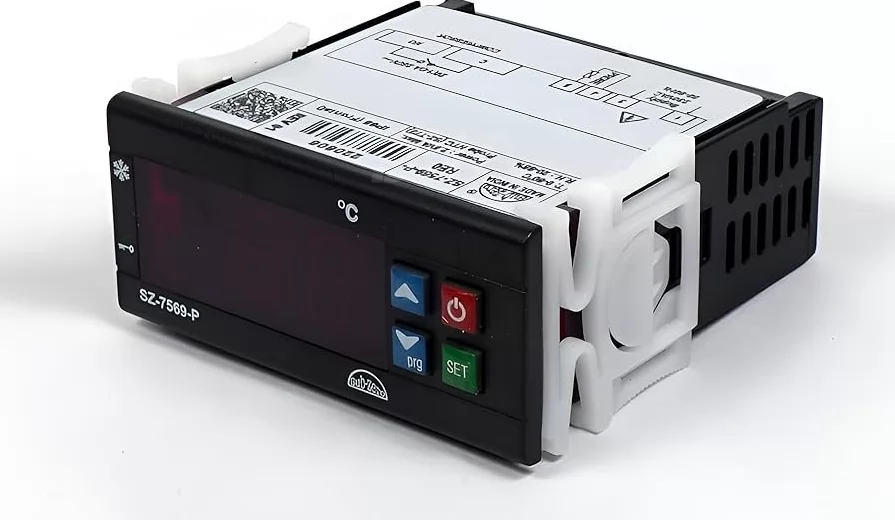

The SZ-7569P is a compact digital temperature controller that features a modern design and robust functionality. Its primary purpose is to monitor and control temperature, ensuring that the connected equipment or system operates within the desired range.

DNA solutions, Nashik has various types of Temperature Controller's. Check out our complete collection of Temperature Controller's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of SZ 7569P Sub Zero 20A Relay Temperature Controller 230V AC

  • Display: Equipped with a 7-segment LED display featuring two 14.2mm (0.5") digits for clear temperature readings
  • Probe Input: Utilizes an NTC sensor for accurate temperature detection
  • Power Supply: Operates on a standard 230V AC power supply
  • Temperature Range: Capable of measuring temperatures from -45°C to +99°C with a resolution of 1°C
  • Relay Output: Features a compressor relay output rated at 20A (14A)
  • Mounting Type: Designed for panel mounting with a panel cutout dimension of 71 x 29mm
  • IP Rating: Boasts an IP65 frontal rating, ensuring protection against dust and water ingress

Specifications of SZ 7569P Sub Zero 20A Relay Temperature Controller 230V AC

  • Dimensions: 75 x 34.5mm
  • Body Material: Constructed from black ABS plastic with auto-extinguish properties
  • Control Type: On/Off control mechanism
  • Screw Terminals: Accommodates 2.5 sq mm terminals

Applications of SZ 7569P Sub Zero 20A Relay Temperature Controller 230V AC

  • Deep freezers
  • Display cabinets
  • Pastry cabinets
  • Chillers

    Package Includes

          1 x SZ 7569P Sub Zero 20A Relay Temperature Controller 230V AC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
