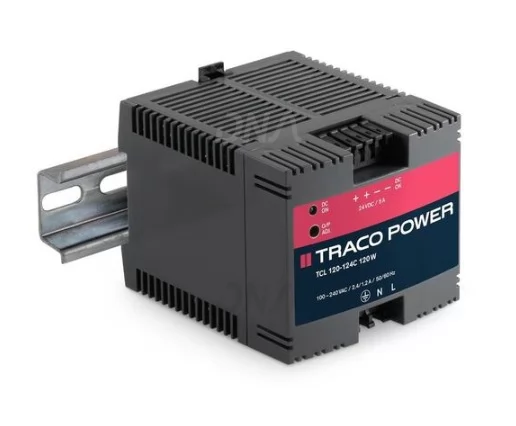

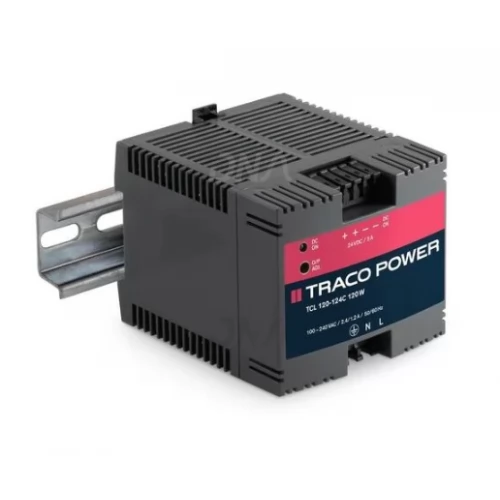

Traco Power TCL 120-112 12 VDC DIN-Rail Power Supply

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • Brand: Traco Power
  • SKU: 7941 | DAH664

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 18,824.37 (inc GST)
    Rs.15,952.86 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Traco Power TCL 120-112 12 VDC DIN-Rail Power Supply

TCL 120-112 DIN-rail power supply with regulated 12 VDC output, up to 8 A current and 96 W output power.

Traco Power TCL 120-112 is a DIN-rail power supply that converts AC or DC input into a regulated 12 VDC output. Its output can be adjusted from 12 to 15 VDC to suit the connected load.
Detachable screw terminal blocks simplify wiring and service. Snap-on DIN-rail mounting suits panel installation, while the supplied adapter supports wall or chassis mounting. A Power OK signal lets the system monitor output status. Overload and short-circuit protection recover automatically after a fault, and up to five units can operate in parallel.
Use this supply for industrial process controls and machine tools that power sensitive loads in challenging industrial environments. Its mounting options and status signal support integration into control equipment.
Explore Traco Power supplies at DNA for your Adaptor & SMPS requirements. Find components for industrial power systems and control equipment. Check other Adaptor & SMPS that we have in stock
Buying electronics in India? Contact DNA if you cannot find the part you need. We can help with imports and support both retail and bulk orders for components such as SMPS units, sensors and converters. Contact Us

Features of Traco Power TCL 120-112 12 VDC DIN-Rail Power Supply

  • Detachable screw terminal blocks simplify wiring and service
  • Snap-on DIN-rail mounting supports panel installation
  • Supplied adapter enables wall or chassis mounting
  • Adjustable output helps match the connected load
  • Power OK signal supports output status monitoring
  • Overload and short-circuit protection recover automatically

Specifications of Traco Power TCL 120-112 12 VDC DIN-Rail Power Supply

  • Input voltage: 85–264 VAC or 85–375 VDC
  • Output voltage: 12 VDC nominal, adjustable from 12 to 15 VDC
  • Maximum output current: 8 A
  • Maximum output power: 96 W
  • Output regulation: 2.5% for 10–90% load variation
  • Ripple and noise: <50 mV peak-to-peak at 20 MHz bandwidth
  • Operating temperature: −10°C to +70°C maximum
  • I/O isolation voltage: 3000 VAC for 60 seconds

Applications of Traco Power TCL 120-112 12 VDC DIN-Rail Power Supply

  • Industrial process controls
  • Machine tools
  • Sensitive loads in equipment exposed to difficult industrial environments

Related Links for Traco Power TCL 120-112 12 VDC DIN-Rail Power Supply

Package Includes

  • 1 X Traco Power TCL 120-112 12 VDC DIN-Rail Power Supply
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
