TIP105 PNP SILICON POWER DARLINGTON TRANSISTOR

TIP105 PNP Silicon Power Darlington Transistor

TIP105 PNP Transistor for power applications; High current gain up to 8A; Low saturation voltage for efficient switching.

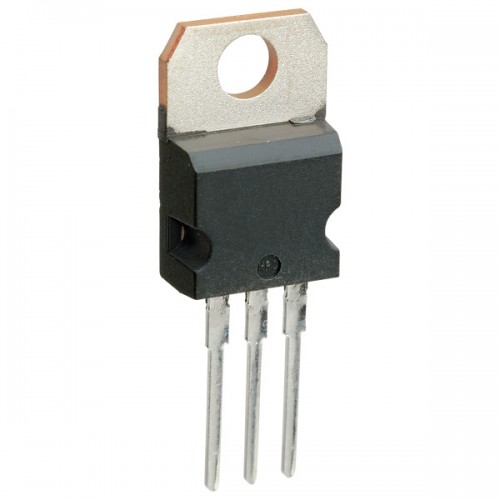

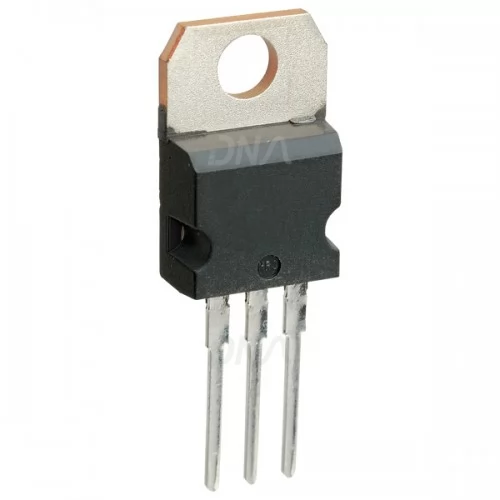

The TIP105 PNP Silicon Power Darlington Transistor is designed for power linear and switching applications. It features a monolithic Darlington configuration in a TO-220 plastic package, providing an impressive current gain. This transistor is ideal for driving heavy loads such as motors and relays, making it a reliable choice for various circuits.

With a collector-emitter voltage of up to 60V and a continuous collector current of 8A, the TIP105 ensures optimal performance in demanding environments. Its low saturation voltage enhances efficiency in switching tasks, making it suitable for audio power amplifiers and DC-AC converters. Integrate this component into your projects for dependable power management.

Explore the versatility of the TIP105 PNP Silicon Power Darlington Transistor for your industrial equipment and electronic designs. Perfect for applications that require robust current handling and high gain, this transistor stands out in the market for its performance and reliability.

Explore a wide range of high-quality Diodes & Transistors at DNA. The TIP105 PNP Transistor is perfect for your power applications. Check other "Diodes & Transistors" that we have in stock.

Are you looking for specific electronic components? DNA can help you find any parts you need. We can import items if not available and support retail as well as bulk orders. Consider checking our range of Sensor Modules, Inductors, Capacitors, and more. Contact Us.

Features of TIP105 PNP Silicon Power Darlington Transistor

• High current gain
• High collector-emitter voltage
• High current capability
• Low saturation voltage
• Complementary PNP configuration

Specification of TIP105 PNP Silicon Power Darlington Transistor

• Collector-Emitter Voltage (Vce): 60V
• Continuous Collector Current (Ic): 8A
• Peak Collector Current: 15A
• Base-Emitter Voltage (Vbe): 2.0V

Applications of TIP105 PNP Silicon Power Darlington Transistor

• Linear and switching industrial equipment
• Audio power amplifier
• General power switching
• DC-AC converter
• Driver for low voltage DC motor

Package Includes

• 1 X TIP105 PNP Silicon Power Darlington Transistor
