• TNY290PN AC/DC Switching Converter IC

Product Images are shown for illustrative purposes only and may differ from actual product.

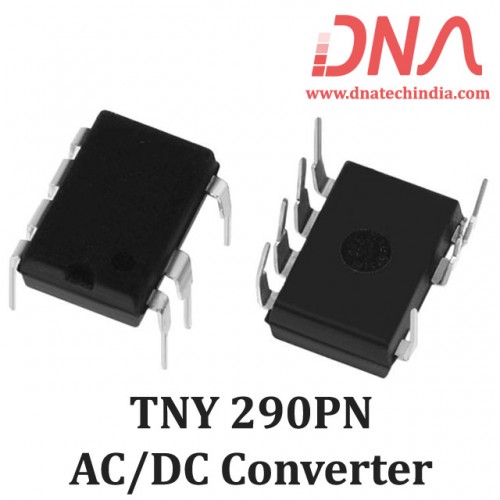

TNY290PN AC/DC Switching Converter IC

  • Rs. 94.40 (inc GST)
    Rs.80.00 + GST

    Qty :

  • Quantity Pricing (inc GST)

    5 + 86.85 15 + 79.89 30 + 73.51

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

TNY290PN AC/DC Switching Converter IC

TNY290PN IC - Power Integrations AC/DC Converter

TNY290 is TinySwitch-4 Family Energy-Efficient, Off-Line Switcher with Enhanced Flexibility and Extended Power Range. TNY290PN Switching Converter IC incorporates a 725 V power MOSFET, oscillator, high voltage switched current source, current limit (user selectable) and thermal shutdown circuitry. The IC family uses an ON/OFF control scheme and offers a design flexible solution with a low system cost and extended power capability.

TNY290PN AC/DC Switching Converter IC combines a high-voltage power MOSFET switch with a power supply controller in one device. Unlike conventional PWM (pulse width modulator) controllers, it uses a simple ON/OFF control to regulate the output voltage. The controller consists of an oscillator, enable circuit (sense and logic),current limit state machine, 5.85 V regulator, BYPASS/MULTIFUNCTION pin undervoltage, overvoltage circuit, and current limit selection circuitry, over-temperature protection, current limit circuit, leading edge blanking, and a 725 V power MOSFET. TinySwitch-4 incorporates additional circuitry for line undervoltage sense,auto-restart, adaptive switching cycle on-time extension, and frequency jitter.

DNA Solutions deals in retail and bulk quantity. We have various values of AC/DC Switching converter IC's. Check our complete collection of AC DC converter and offline Switcher IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of TNY290PN AC/DC Converter IC

  • 725 V rated MOSFET Increases BV de-rating margin
  • Line compensated overload power – no additional components
  • Dramatically reduces max overload variation over universal input voltage range
  • ±5% turn on UV threshold: line voltage sense with single external resistor
  • Simple ON/OFF control, no loop compensation needed
  • Selectable current limit through BP/M capacitor value
  • Higher current limit extends peak power or, in open frame applications, maximum continuous power
  • Lower current limit improves efficiency in enclosed adapters/chargers
  • Allows optimum TinySwitch™-4 choice by swapping devices with no other circuit redesign
  • Tight I2f parameter tolerance reduces system cost
  • Maximizes MOSFET and magnetics utilization
  • ON-time extension – extends low-line regulation range/hold-up time to reduce input bulk capacitance
  • Self-biased: no bias winding or bias components
  • Frequency jittering reduces EMI filter costs
  • Pin-out simplifies heat sinking to the PCB
  • SOURCE pins are electrically quiet for low EMI

                              Applications of TNY290PN AC/DC Converter IC

                              • PC Standby and other auxiliary supplies
                              • DVD/PVR and other low power set top decoders
                              • Supplies for appliances, industrial systems, metering, etc
                              • Chargers/adapters for cell/cordless phones, PDAs, digital cameras,MP3/portable audio, shavers, etc.

                                  Package Includes

                                  1 x TNY290PN IC AC/DC Switching Converter IC

                                  Extra Information
                                  Country of Origin China
                                  Imported By ElectroSource Private Limited

                                  Reviews (0)

                                  Write a review

                                  Note: HTML is not translated!
                                      Bad           Good
