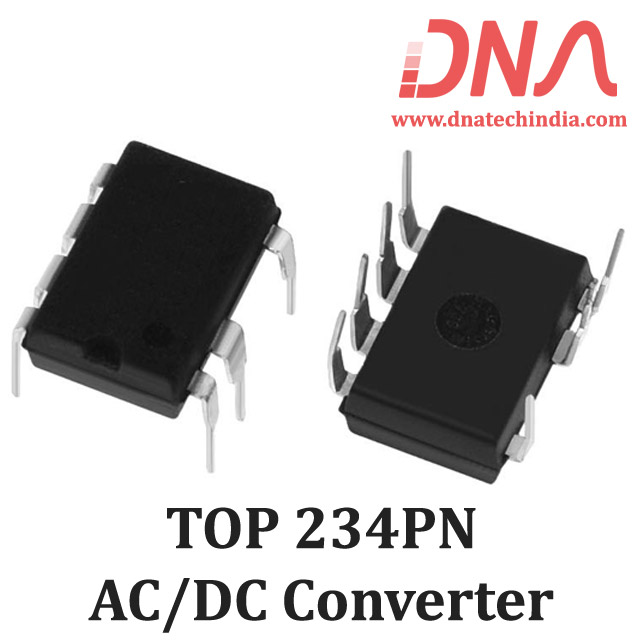

TOP234PN AC-DC offline Switcher IC

TOP234PN AC-DC offline Switcher IC

TOP234PN Integrated Offline Switcher IC for Adapter and SMPS with high-voltage power MOSFET and PWM control.

The TOP234PN AC-DC offline Switcher IC (TOP234PN) is designed for efficient operation in adapters and SMPS applications. This IC integrates high-voltage power MOSFET, PWM control, and fault protection on a single chip, enhancing performance and energy efficiency. It features a MULTI-FUNCTION (M) pin for programmable line OV/UV shutdown, and a FREQUENCY (F) pin for flexibility in design. With soft-start and cycle skipping, the TOP234PN Integrated Offline Switcher IC delivers reliable power management in compact designs.

Engineered for versatility, the TOP234PN AC-DC offline Switcher IC supports a wide range of applications, making it ideal for modern electronic devices. Its ability to synchronize to external signals maximizes design options while maintaining efficiency. The IC’s hysteretic thermal shutdown ensures safety and longevity, making it a preferred choice for engineers.

With its advanced features, the TOP234PN Integrated Offline Switcher IC is suitable for a variety of projects, from consumer electronics to industrial applications. Experience improved design flexibility and performance with this integrated solution, ensuring your devices operate smoothly and efficiently.

Explore the quality of AC DC converter Offline Switcher products at DNA. The TOPSwitch™-FX by the Brand/Manufacturer is an excellent choice for your power management needs. Check other AC DC converter Offline Switcher that we have in stock.

At DNA, we understand that sourcing electronic components can be challenging. If you can't find specific parts, we can help! We import components and support both retail and bulk orders. Don't forget to check out related items like Inductor, Analog IC, Humidity & Temperature Sensor, IGBT, SMPS, and Hongfa Relay. Contact Us

Features of TOP234PN AC-DC offline Switcher IC

• High-voltage power MOSFET
• PWM control integrated
• Programmable line OV/UV shutdown
• Soft-start and cycle skipping
• Hysteretic thermal shutdown

Specification of TOP234PN AC-DC offline Switcher IC

• Switching frequency 132 kHz
• Multi-function pin
• Frequency pin in Y package
• Larger creepage
• Wider DCMAX

Applications of TOP234PN AC-DC offline Switcher IC

• Adapters
• SMPS
• Power management systems
• Consumer electronics
• Industrial power supplies

Related Links for TOP234PN AC-DC offline Switcher IC

• Other Products from AC DC converter Offline Switcher Category

Package Includes

• 1 X TOP234PN AC-DC offline Switcher IC
