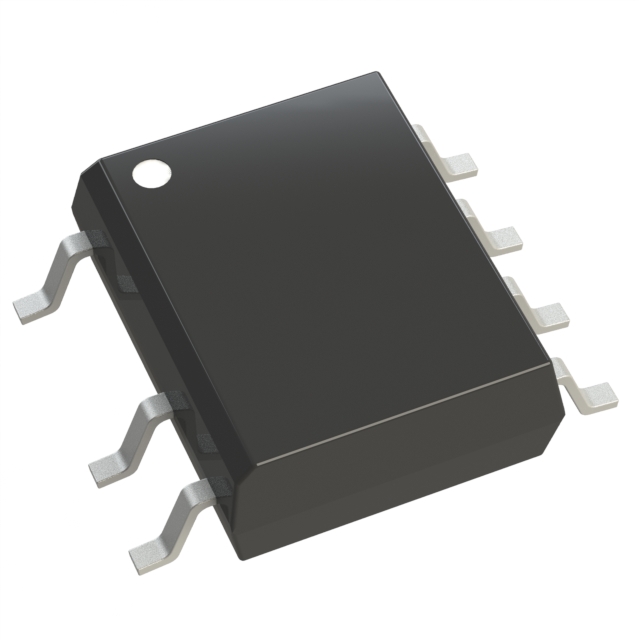

TNY285DG-TL AC/DC Converter SMD IC

TNY285DG-TL AC/DC Converter SMD IC

The TNY285DG-TL AC/DC Converter SMD IC is a member of the Tiny Switch-II family from Power Integrations, designed for low-power offline switcher applications. This highly integrated IC includes a 700V power MOSFET, oscillator, high voltage switched current source, current limit, and thermal shutdown circuitry. It provides cost-effective and energy-efficient solutions for compact AC/DC power supplies, enabling reduced component count and simplified circuit design. The TNY285DG-TL is ideal for use in adapters, auxiliary power supplies, and standby power systems.

DNA solutions, Nashik has various types of Converter IC's. Check out our complete collection of Converter IC's.

Features of TNY285DG-TL AC/DC Converter SMD IC

• Integrated 700V power MOSFET and control circuitry

• Low standby power and high efficiency

• Auto-restart for output short circuit and open loop protection

• Hysteretic thermal shutdown with automatic recovery

• Frequency jittering reduces EMI

• Minimal external components required

Specifications of TNY285DG-TL AC/DC Converter SMD IC

• Input Voltage Range: 85V AC to 265V AC

• Output Power: Up to 11W (open frame)

• Switching Frequency: 132 kHz (typical)

• Package: SMD SOIC-8

• Operating Temperature: -40°C to +150°C

• Manufacturer: Power Integrations

Applications of TNY285DG-TL AC/DC Converter SMD IC

• Low-power AC/DC adapters

• Set-top boxes and DVD players

• Standby power supplies

• Industrial control equipment

• Battery chargers and LED lighting

Package Includes

      1 x TNY285DG-TL AC/DC Converter SMD IC
