• TOP246PN AC-DC offline Switcher IC

Product Images are shown for illustrative purposes only and may differ from actual product.

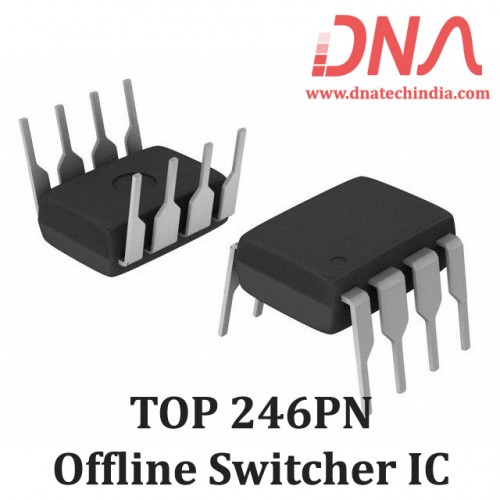

TOP246PN AC-DC offline Switcher IC

  • Rs. 122.72 (inc GST)
    Rs.104.00 + GST

    Qty :

  • Quantity Pricing (inc GST)

    5 + 112.93 15 + 103.84 30 + 95.58

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

TOP246PN AC to DC offline Switching Converter IC

TOP246PN AC to DC Off-Line PWM Switch IC used in SMPS & Adapter

TOP246PN IC is a TOPSwitch-GX family which uses the same proven topology as TOPSwitch, cost effectively integrating the high voltage power MOSFET,PWM control, fault protection and other control circuitry onto a single CMOS chip. Many new functions are integrated to reduce system cost and improve design flexibility, performance and energy efficiency.

Depending on package type, either 1 or 3 additional pins over the TOPSwitch standard DRAIN, SOURCE and CONTROL terminals allow the following functions: line sensing (OV/UV,line feed-forward/DCMAX reduction), accurate externally set current limit, remote ON/OFF, synchronization to an external lower frequency, and frequency selection (132 kHz/66 kHz).

All package types provide the following transparent features: Soft-start, 132 kHz switching frequency (automatically reduced at light load), frequency jittering for lower EMI, wider DCMAX, hysteretic thermal shutdown, and larger creepage packages. In addition in TOP246PN AC-DC offline Switcher IC all critical parameters (i.e. current limit, frequency,PWM gain) have tighter temperature and absolute tolerances to simplify design and optimize system cost.

DNA Solutions deals in retail and bulk quantity. We have various values of AC/DC Switching converter IC's. Check our complete collection of AC DC converter and offline Switcher IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of TOP246PN offline switcher IC

  • Extended power range for higher power applications
  • No heatsink required up to 34 W using P/G packages
  • Features eliminate or reduce cost of external components
  • Fully integrated soft-start for minimum stress/overshoot
  • Externally programmable accurate current limit
  • Wider duty cycle for more power, smaller input capacitor
  • Separate line sense and current limit pins on Y/R/F packages
  • Line under-voltage (UV) detection: no turn off glitches
  • Line overvoltage (OV) shutdown extends line surge limit
  • Line feed-forward with maximum duty cycle (DCMAX) reduction rejects line ripple and limits DCMAX at high line
  • Frequency jittering reduces EMI and EMI filtering costs
  • Regulates to zero load without dummy loading
  • 132 kHz frequency reduces transformer/power supply size
  • Half frequency option in Y/R/F packages for video applications
  • Hysteretic thermal shutdown for automatic fault recovery
  • Large thermal hysteresis prevents PC board overheating

                                                            Applications of TOP246PN AC-DC Offline Switcher IC

                                                            • Appliances and timers
                                                            • LED drivers and industrial controls

                                                            Package Includes

                                                            1 x TOP246PN AC-DC Offline Switcher IC

                                                            Extra Information
                                                            Country of Origin China
                                                            Imported By ElectroSource Private Limited

                                                            Reviews (0)

                                                            Write a review

                                                            Note: HTML is not translated!
                                                                Bad           Good
