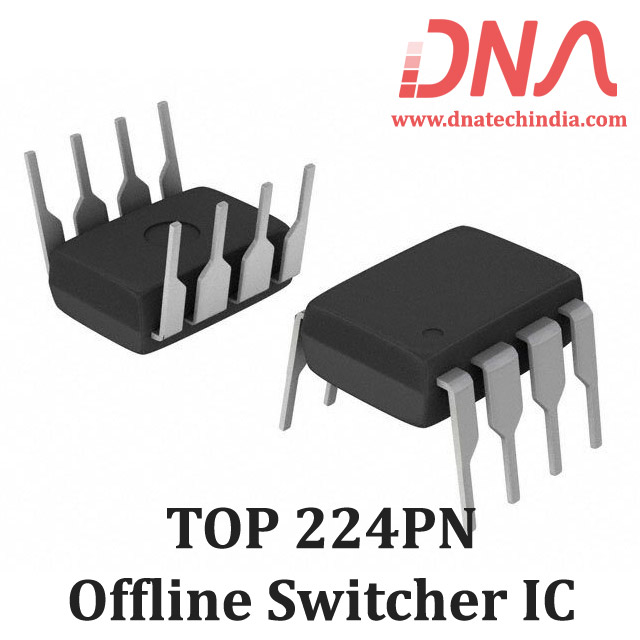

TOP224PN AC-DC offline Switcher IC

  • Stock: 16

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Power Integrations
  • SKU: 2950 | DAE627

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 107.38 (inc GST)
    Rs.91.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

TOP224PN AC-DC offline Switcher IC

TOP224PN IC for SMPS & Adapter, 100W-150W input range, high efficiency with integrated functions.

The TOP224PN AC-DC offline Switcher IC is designed for use in switched mode power supplies (SMPS) and adapters. This second-generation IC offers enhanced efficiency, extending power ranges up to 150W for 100/115/230 VAC inputs and 90W for universal inputs. Its advanced design reduces sensitivity to board layout and line transients, making it ideal for applications including TVs, monitors, and audio amplifiers.
The TOP224PN integrates essential functions such as a power MOSFET, PWM controller, and fault protection circuitry into a compact 8L PDIP package. This design eliminates the need for external power resistors, reducing costs while enhancing performance. Its efficient CMOS process minimizes bias currents compared to traditional solutions.
With self-biasing capabilities and robust protection features, the TOP224PN AC-DC offline Switcher IC is an excellent choice for high-efficiency applications. Explore its potential in your next electronic project and experience the benefits of integrated technology.
Discover the reliability of the TOP224PN AC-DC offline Switcher IC from DNA. Explore our extensive range of AC DC converter Offline Switchers to meet your electronic needs. Check other "AC DC converter Offline Switcher" that we have in stock.
At DNA, we cater to all your electronic component needs. If you can’t find a specific part, let us know. We can import it if it's not available. We support both retail and bulk orders. Check out related items like LCDs, Programmers, Humidity & Temperature Sensors, MOSFETs, and Power Supplies. Contact Us.

Features of TOP224PN AC-DC offline Switcher IC

  • High efficiency
  • Integrated functions
  • Self-biasing and fault protection
  • Cost-effective design
  • Compact 8L PDIP package

Specification of TOP224PN AC-DC offline Switcher IC

  • Power range 100W-150W
  • Input voltage 85-265 VAC
  • Package type 8L PDIP
  • High voltage startup circuit
  • Loop compensation

Applications of TOP224PN AC-DC offline Switcher IC

  • Switched mode power supplies
  • Adapters
  • TVs
  • Monitors
  • Audio amplifiers

Related Links for TOP224PN AC-DC offline Switcher IC

Package Includes

  • 1 X TOP224PN AC-DC offline Switcher IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
