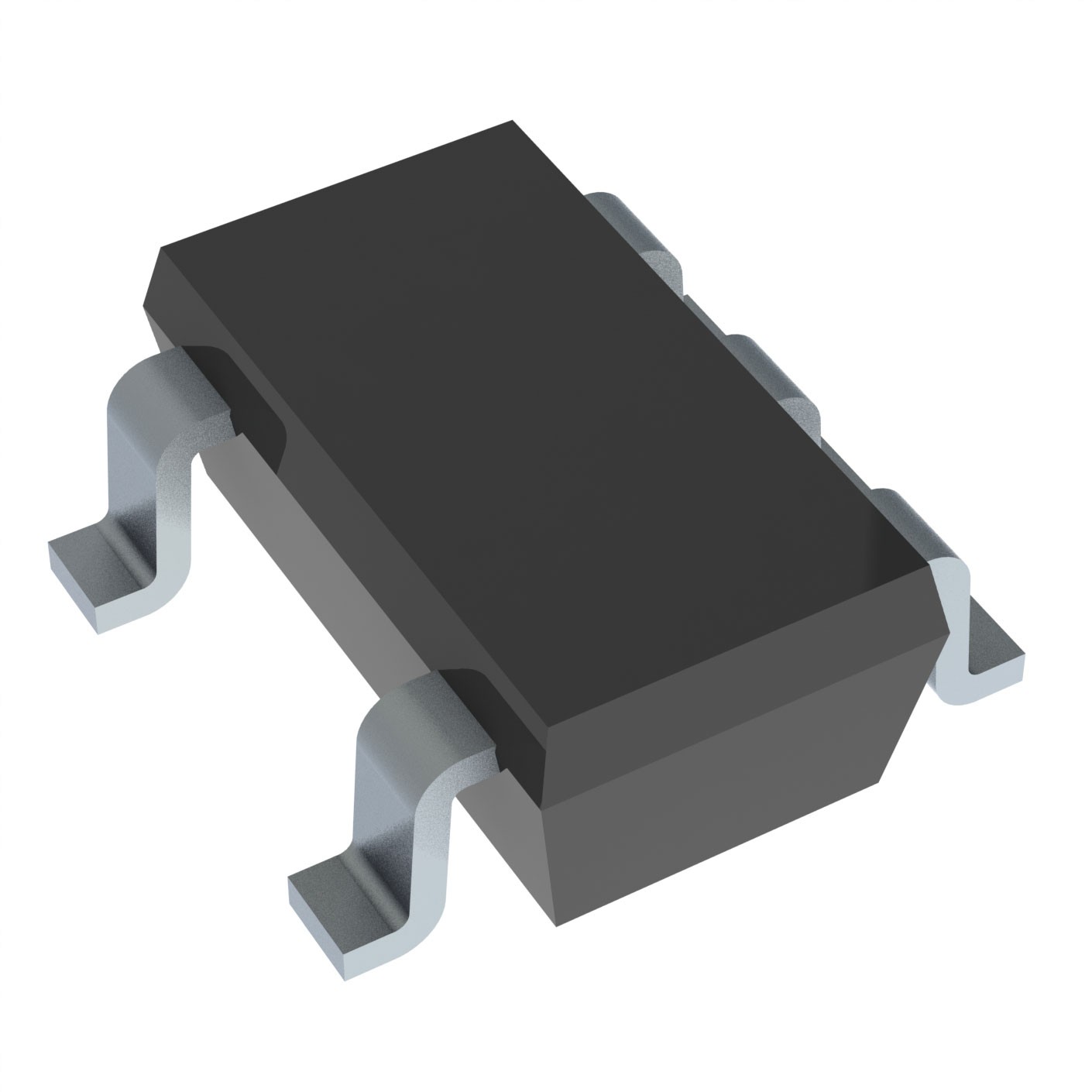

TPS60400DBVT Switching Voltage Regulator SMD IC

TPS60400DBVT Switching Voltage Regulator SMD IC

TPS60400DBVT IC generates negative voltage, supports 3V to 7V input, and provides up to 60mA output current.

The TPS60400DBVT Switching Voltage Regulator SMD IC efficiently generates negative voltage from a positive input supply using a charge pump topology. It operates within a wide input voltage range of 3V to 7V and delivers output currents up to 60mA. This makes it suitable for various applications such as biasing operational amplifiers and powering LCD displays.

With its low quiescent current, the TPS60400DBVT Switching Voltage Regulator SMD IC ensures efficient performance, particularly in portable and battery-powered devices. Housed in a compact SOT-23-6 package, it offers excellent space-saving benefits for modern electronic designs.

Ideal for sensor signal conditioning circuits and general-purpose negative voltage generation, the TPS60400DBVT Switching Voltage Regulator SMD IC is a reliable choice for engineers looking for efficiency and compactness in their designs.

Explore the reliability of Voltage Regulators with TPS60400DBVT at DNA. Discover high-quality components for your projects. Check other Voltage Regulators that we have in stock.

If you need specific electronic parts, reach out to us. We can import components not available in our stock. We also support retail and bulk orders. Explore related items like HMI Displays, Development Boards, Microcontrollers, Transistors, Inductors, and Connectors. Contact Us.

Features of TPS60400DBVT Switching Voltage Regulator SMD IC

• Generates negative voltage from positive input supply
• Wide input voltage range from 3V to 7V
• Output current capability up to 60mA
• Low quiescent current for efficient operation
• Compact SOT-23-6 package for space-saving designs
• Easy implementation without inductors

Specification of TPS60400DBVT Switching Voltage Regulator SMD IC

• Input voltage range: 3V to 7V
• Output current: Up to 60mA
• Output voltage: Negative voltage generation
• Quiescent current: Typically 65µA
• Package type: SOT-23-6
• Operating temperature range: -40°C to +85°C

Applications of TPS60400DBVT Switching Voltage Regulator SMD IC

• Generating negative supply for operational amplifiers
• Biasing for LCD displays
• Portable and battery-powered devices
• Sensor signal conditioning circuits
• General-purpose negative voltage generation

Package Includes

• 1 X TPS60400DBVT Switching Voltage Regulator SMD IC
