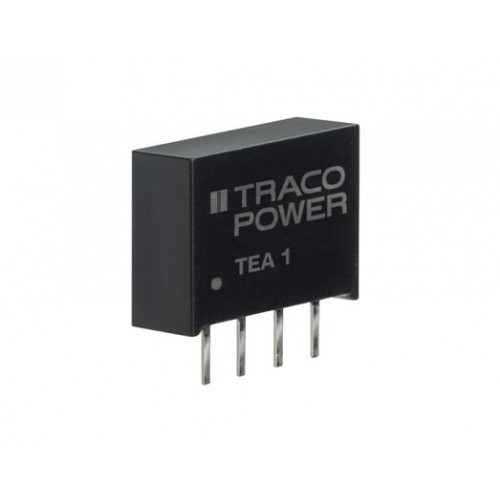

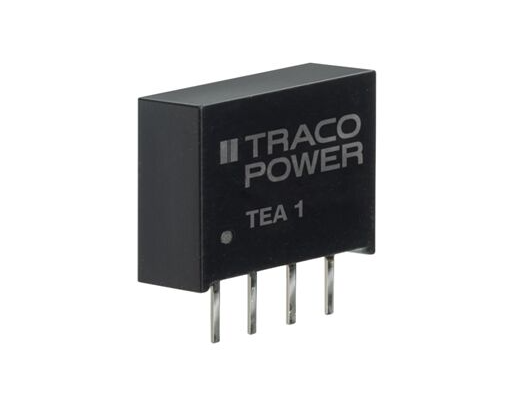

Traco Power TEA 1-0505H 1W Isolated DC/DC Converter Module

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • Brand: Traco Power
  • SKU: 11039 | DAK141

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 243.80 (inc GST)
    Rs.206.61 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Traco Power TEA 1-0505H 1W Isolated DC/DC Converter Module

TEA 1-0505H is an unregulated isolated DC/DC converter module with 5V nominal input and output, up to 200mA output current, and 1W output power.

The Traco Power TEA 1-0505H is a 1W isolated DC/DC converter module for designs that need unregulated power conversion. It accepts a 4.5–5.5V DC input and provides a 5V DC output at up to 200mA. Its input-to-output isolation helps separate the input and output sides of a circuit.
The SIP-7 through-hole package mounts on a PCB and suits space-conscious designs. The module works from -40°C to +85°C without power derating, which gives designers a broad operating range. Its output needs no minimum load.
This converter fits high-volume, cost-critical projects that need a simple isolated supply. Automatic recovery after a short circuit adds a useful function for these designs.
DNA stocks Traco Power DC to DC Converter Modules for electronics builds and production needs. Explore this isolated 1W converter and other parts in the range. Check other DC to DC Converter Modules that we have in stock
Buying electronics components in India? Contact DNA for import support and retail or bulk orders. We can also help you find Capacitors, DC to DC Converter Modules, Programmers, Development boards, IGBTs and Nextion Displays. Contact Us

Features of Traco Power TEA 1-0505H 1W Isolated DC/DC Converter Module

  • Unregulated isolated DC-to-DC conversion
  • Through-hole PCB mounting
  • No minimum load required
  • Automatic recovery after a short circuit

Specifications of Traco Power TEA 1-0505H 1W Isolated DC/DC Converter Module

  • Input voltage: 4.5–5.5V DC, 5V nominal
  • Output voltage: 5V DC nominal
  • Maximum output current: 200mA
  • Output power: 1W
  • Efficiency: 78% typical
  • Isolation test voltage: 4,000V DC input to output for 60s
  • Operating temperature: -40°C to +85°C without derating, with 5%/°C power derating above +85°C up to +95°C
  • Package: SIP-7, through-hole PCB mounting

Applications of Traco Power TEA 1-0505H 1W Isolated DC/DC Converter Module

  • High-volume, cost-critical projects

Related Links for Traco Power TEA 1-0505H 1W Isolated DC/DC Converter Module

Package Includes

  • 1 X Traco Power TEA 1-0505H 1W Isolated DC/DC Converter Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
