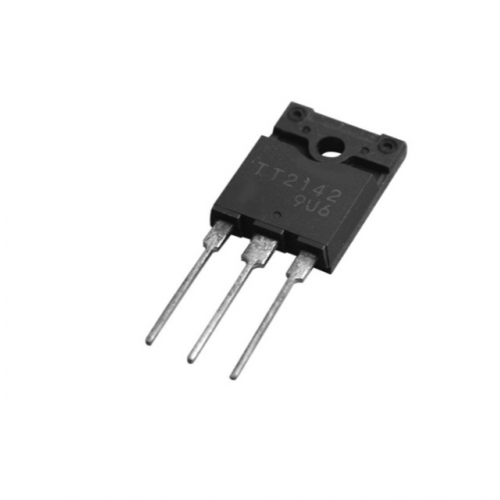

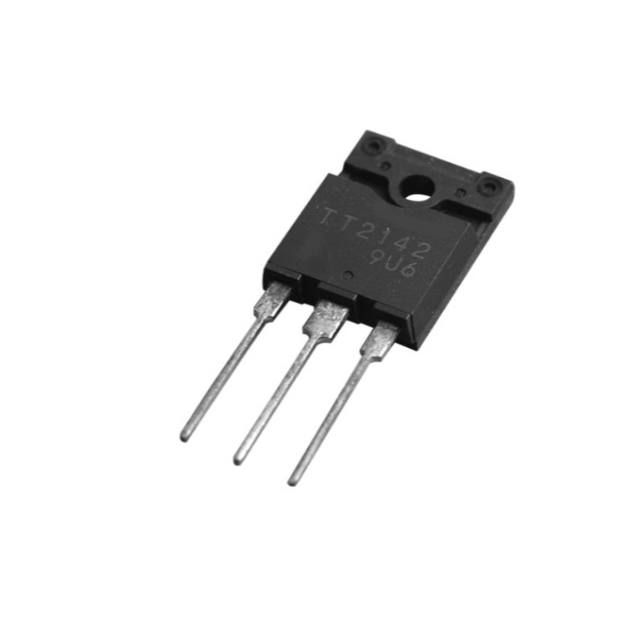

TT2142 NPN Power Transistor TO‑220 Package

TT2142 NPN Power Transistor for Amplifier Applications

TT2142 NPN Power Transistor designed for high-current applications with low saturation voltage and robust thermal stability.

The TT2142 NPN Power Transistor is engineered for high-current and medium-voltage switching applications. It excels in power dissipation and current gain, making it suitable for various tasks in both industrial and consumer electronics. The TO-220 package ensures effective heat dissipation, which is critical for maintaining performance in demanding environments.

In applications like motor drives, audio amplifier stages, and regulated power supplies, the TT2142 NPN Power Transistor stands out for its reliability and efficiency. With a collector-emitter voltage of 160V and a collector current rating of 10A, it offers versatility across different circuits. Its low saturation voltage allows for efficient operation, which is essential for energy-conscious designs.

As a trusted source for electronic components, we provide the TT2142 NPN Power Transistor for those seeking robust diodes and transistors. Explore this component for your switching regulators and power amplifiers to enhance your project’s performance.

Explore the reliability of Diodes & Transistors with the TT2142 from a reputable Manufacturer. At DNA, we offer a wide selection of Diodes & Transistors. Check other "Diodes & Transistors" that we have in stock.

If you’re looking for additional electronic components, reach out to us. We can help you find specific parts, and if they're not available, we can import them. We also support retail and bulk orders. Consider checking out related items like Development boards, Digital IC, Sensor Module, and more. Contact Us.

Features of TT2142 NPN Power Transistor

• Silicon NPN power transistor
• High current gain
• Fast switching speed
• Low saturation voltage
• TO-220 package for effective heat dissipation

Specification of TT2142 NPN Power Transistor

• Transistor Type: NPN BJT
• Collector-Emitter Voltage (VCEO): 160 V
• Collector Current (IC): 10 A
• Power Dissipation (PD): ~80 W
• DC Current Gain (hFE): 40–320
• Package: TO-220

Applications of TT2142 NPN Power Transistor

• Switching regulators
• Power amplifiers
• Relay and lamp drivers
• Motor control circuits
• General-purpose power electronics

Related Links for TT2142 NPN Power Transistor for Amplifier Applications

• Other Products from Diodes & Transistors Category

Package Includes

• 1 X TT2142 NPN Power Transistor (TO‑220)
