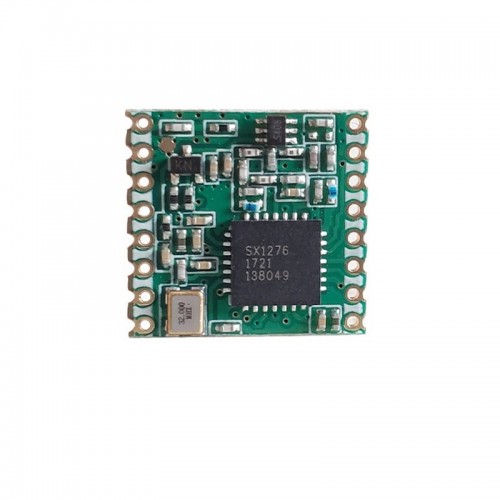

SX1276 868MHZ LORA Module

SX1276 868MHZ LORA Module

The SX1276 868MHz LoRa Module is a long-range, low-power RF module based on Semtech’s SX1276 LoRa transceiver. It supports ultra-long-range spread spectrum communication, high interference immunity, and minimal power consumption, making it ideal for IoT and industrial wireless applications in the 868 MHz ISM band.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of Module's.

• Based on Semtech SX1276 LoRa transceiver chip

• Frequency: 868 MHz

• LoRa modulation for long-range and robust communication

• Low power consumption, suitable for battery-powered applications

• SPI Interface for easy MCU integration

Specifications of SX1276 868MHZ LORA Module

• Operating Voltage: 1.8V to 3.7V

• Operating Frequency: 868 MHz

• Transmit Power: +20 dBm

• Receive Sensitivity: -137 dBm to -148 dBm

• Interface: SPI

• Operating Temperature: -40°C to +85°C

Applications of SX1276 868MHZ LORA Module

• Wireless sensor networks

• Smart agriculture

• Home and industrial automation

• Remote control and telemetry

Package Includes

      1 x SX1276 868MHZ LORA Module
