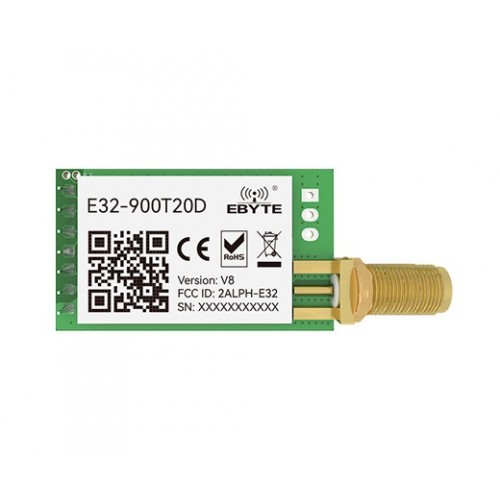

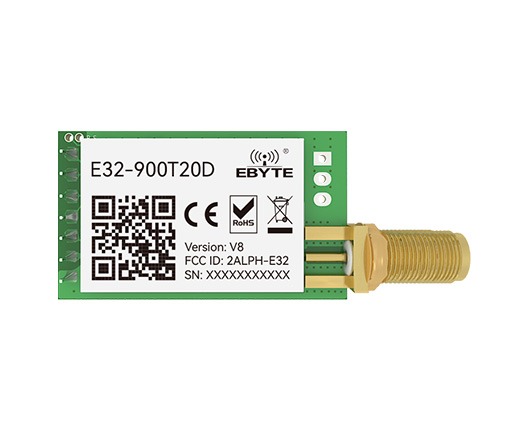

E32-900T20D 862～931MHz LoRa Wireless Transceiver Serial Port Frequency Band Module

E32-900T20D 862～931MHz LoRa Wireless Transceiver Serial Port Frequency Band Module

E32-900T20D 862～931MHz LoRa Wireless Transceiver Serial Port Frequency Band Module

The E32-900T20D is designed for long-range wireless communication with a transmission power of 20dBm (100mW), capable of reaching distances up to 8 km in optimal conditions. The module's LoRa spread spectrum modulation enhances signal robustness, making it resistant to interference and suitable for noisy environments. It features a UART (TTL) interface, making it easy to integrate with microcontrollers, PCs, or other digital devices. This module is well-suited for projects requiring long-range, reliable, and low-power wireless communication.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of Module's.

• Advanced LoRa modulation, with the advantage of long-distance anti-interference

• Fixed-point transmission, broadcast transmission, channel monitoring

• FEC forward error correction to improve communication stability

• Air wake-up (ultra-low power consumption), suitable for battery applications

• Under ideal conditions, the communication distance can reach 5.5km, and the transmission distance is better than traditional GFSK

• Adopt industrial-grade active temperature-compensated crystal oscillator to ensure its stability and consistency

• The maximum transmit power is 20dBm, and the software is multi-level adjustable

• Industrial-grade standard design, supporting long-term use at -40～+85℃

• Support 868/915MHz EU general frequency band

• The data transmission rate of 0.3k～19.2kbps

• 2.3~5.5V power supply, power supply greater than 3.3V can guarantee the best performance

• IPEX/stamp hole interface for easy connection of coaxial cable or external antenna

Applications of E32-900T20D 862-931MHz LoRa Wireless Transceiver Serial Port Frequency Band Module

• Smart home and industrial sensors

• Wireless alarm security system

• Home security alarm and remote keyless entry

• Building automation solutions

• Wireless industrial-grade remote control

• Health care products

• Automotive industry applications

• Advanced Meter Reading Architecture(AMI)

Package Includes

• 1 x E32-900T20D 862-931MHz LoRa Wireless Transceiver Serial Port Frequency Band Module
