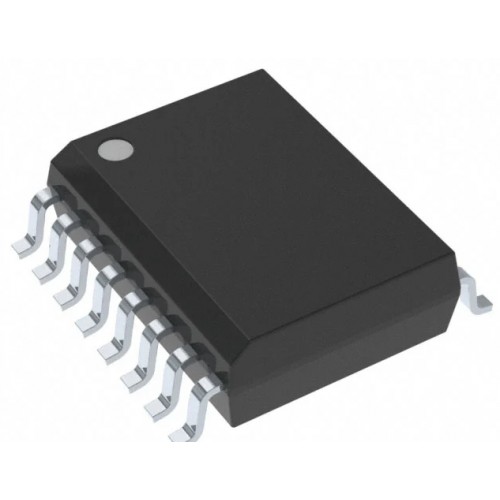

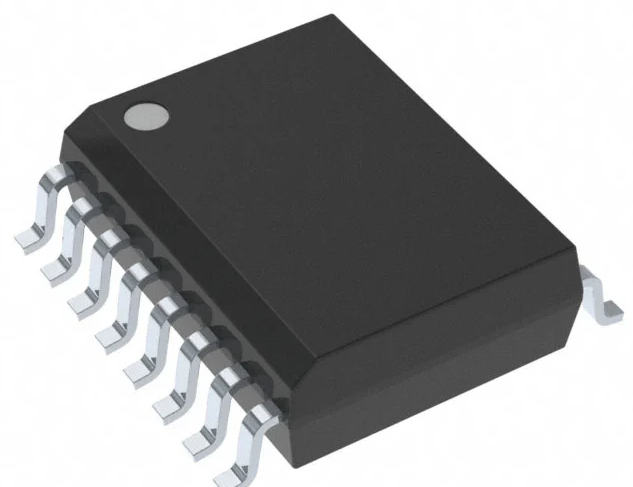

UC3906DW Battery Charger Controller IC

UC3906DW IC for sealed lead-acid battery charging with precision float-charge and low standby current of 1.6mA.

The UC3906DW Battery Charger Controller IC is designed for optimal control of sealed lead-acid batteries. It manages the charge cycle through three states: high current bulk-charge, controlled over-charge, and precision float-charge. This IC ensures consistent performance across a wide temperature range, making it suitable for various applications in India. The device's low standby current of 1.6mA allows efficient monitoring of ambient conditions.

With features like separate voltage loop and current limit amplifiers, the UC3906DW regulates output voltage and current levels effectively. It also includes a charge enable comparator that prevents high current charging during abnormal conditions. Its under-voltage sense circuit provides an output to indicate when input power is available, enhancing reliability.

Ideal for battery charging systems, the UC3906DW Battery Charger Controller IC is a valuable component in electronic projects requiring efficient battery management. Its ability to monitor and control battery conditions makes it essential for developers and manufacturers in India looking for reliable battery management solutions.

Explore our range of Battery Chargers and BMS Modules at DNA. The UC3906DW is a reliable choice for efficient battery management. Check other Battery Chargers and BMS Modules that we have in stock.

At DNA, we cater to all your electronic component needs. If you can’t find certain parts, reach out to us. We can import items not in stock and support both retail and bulk orders. Explore related products like Development boards, Power Supply, Connectors, Sensor Module, Digital IC, and SMPS. Contact Us.

Features of UC3906DW Battery Charger Controller IC

• Optimal control for lead-acid batteries
• Three charging states
• Low standby current of 1.6mA
• Under-voltage sense circuit
• Voltage and current regulation

Specification of UC3906DW Battery Charger Controller IC

• Operating temperature range
• Supply voltage
• Output current capability
• Charge state logic
• Battery condition sensing

Applications of UC3906DW Battery Charger Controller IC

• Battery management systems
• Sealed lead-acid chargers
• Electronic projects
• Renewable energy systems
• Automotive battery chargers

Related Links for UC3906DW Battery Charger Controller IC

• Other Products from Battery Chargers and BMS Modules Category

Package Includes

• 1 X UC3906DW Battery Charger Controller IC
