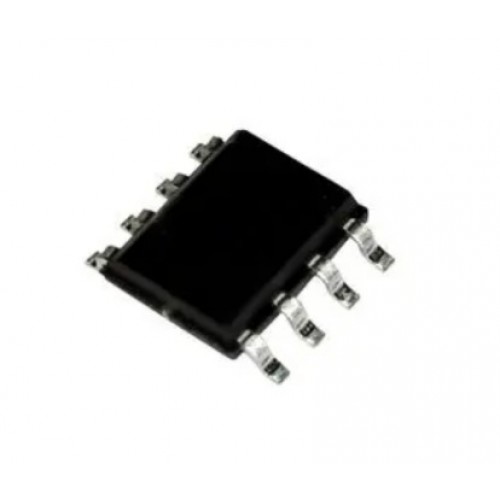

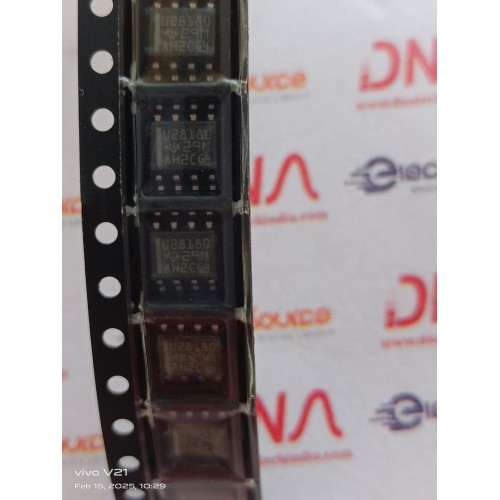

UCC28180 CCM, Boost, PFC Controller SMD IC

UCC28180 CCM, Boost, PFC Controller SMD IC

UCC28180 CCM, Boost, PFC Controller SMD IC is a power factor correction (PFC) controller designed to operate in continuous conduction mode (CCM) with boost topology. It enables efficient power conversion in AC-DC applications by achieving near-unity power factor, reducing input current harmonics, and offering comprehensive protection features. Its small form factor and high-performance design make it ideal for compact and energy-efficient power systems.

DNA Solutions, Nashik has various types of power and control ICs . Check out our complete collection of Power ICs.

Features of UCC28180 CCM, Boost, PFC Controller SMD IC

• Continuous conduction mode (CCM) PFC controller

• Programmable operating frequency (up to 250kHz)

• Power factor correction with THD minimization

• Under-voltage lockout and soft-start functionality

• Cycle-by-cycle current limiting and thermal protection

Specifications of UCC28180 CCM, Boost, PFC Controller SMD IC

• Input Voltage Range: 85V to 265V AC

• Output Voltage: Programmable with external feedback

• Operating Frequency: Up to 250kHz

• Package Type: SOIC-8 (SMD)

• Operating Temperature: –40°C to +125°C

Applications of UCC28180 CCM, Boost, PFC Controller SMD IC

• Power factor correction in SMPS

• Telecom and networking equipment

• Industrial and medical power supplies

• AC-DC power converters for LED lighting

Package Includes

     1 x UCC28180 CCM, Boost, PFC Controller SMD IC
