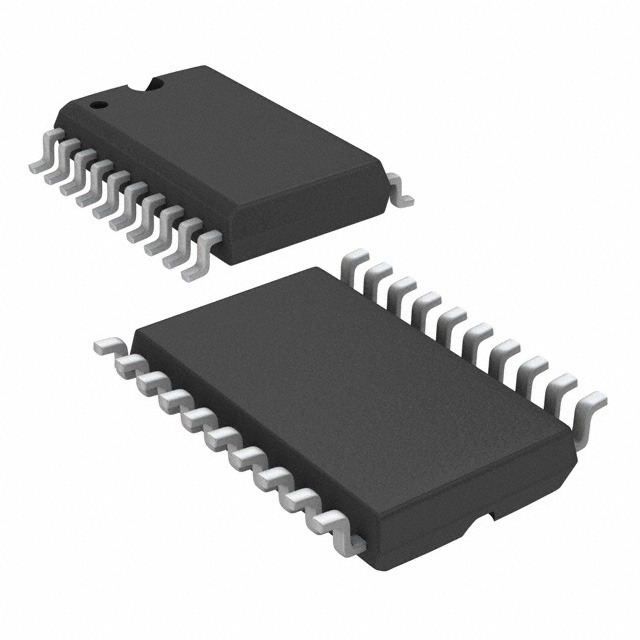

Product Images are shown for illustrative purposes only and may differ from actual product.

UCC3895 - BiCMOS Advanced Phase-Shift PWM Controller SOIC-20 IC


Write a review | 0 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-03-03

  • SKU: 7474 | DAF849

Availability: NotInStock priceValidUntil: 2026-03-03

  • Rs. 441.32 (inc GST)
    Rs.374.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

UCC3895 - BiCMOS Advanced Phase-Shift PWM Controller SOIC-20 IC

UCC3895 - BiCMOS Advanced Phase-Shift PWM Controller SOIC-20 IC

The UCC3895 is a phase-shift PWM controller that implements control of a full-bridge power stage by phase shifting the switching of one half-bridge with respect to the other. The device allows constant frequency pulse-width modulation in conjunction with resonant zero-voltage switching to provide high efficiency at high frequencies. The part is used either as a voltage-mode or current-mode controller. While the UCC3895 maintains the functionality of the UC3895 it improves on that controller family with additional features such as enhanced control logic, adaptive delay set, and shutdown capability.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of UCC3895 - BiCMOS Advanced Phase-Shift PWM Controller SOIC-20 IC

  • Programmable-output turn on delay
  • Adaptive delay set
  • Bidirectional oscillator synchronization
  • Voltage-mode, peak current-mode, or average current-mode control
  • Programmable soft start, soft stop, and chip disable via a single pin
  • 0% to 100% duty-cycle control
  • Typical 5-mA operating current at 500 kHz
  • Very low 150-μA current during UVLO

Specifications of UCC3895 - BiCMOS Advanced Phase-Shift PWM Controller SOIC-20 IC

  • Phase-shifted full-bridge converters
  • Off-line, telecom, data com, and servers
  • Distributed power architecture
  • High-density power modules

    Package Includes

    • 1 x UCC3895 - BiCMOS Advanced Phase-Shift PWM Controller SOIC-20 IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
