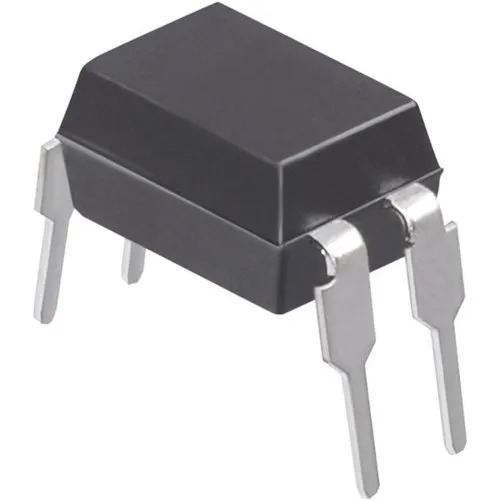

LTV-817A OPTOISOLATOR 5KV TRANSISTOR 4-PIN IC

LTV-817A OPTOISOLATOR 5KV TRANSISTOR 4PIN IC

The LTV-817A is a high-performance optoisolator that provides electrical isolation between input and output circuits. It consists of an infrared LED optically coupled to a phototransistor in a compact 4-pin package. Designed to offer 5kV isolation voltage, this optoisolator is ideal for use in applications where galvanic isolation is critical, such as industrial control systems, power supplies, and microcontroller interfaces.

DNA solutions, Nashik has various types of  IC's. Check out our complete collection of IC's.

• High Isolation Voltage: Provides up to 5kV isolation between input and output.

• Compact 4-Pin Package: Standard DIP package for space-saving and easy integration.

• Low Input Current: Operates efficiently with low power requirements.

• Wide CTR Range: Current Transfer Ratio (CTR) of 50% to 600% for versatile application use.

• Fast Response Time: Ensures reliable performance in high-speed switching applications.

• Durable Design: Resistant to electrical surges and noise interference.

Specifications of LTV-817A OPTOISOLATOR 5KV TRANSISTOR 4PIN IC

• Isolation Voltage: 5000 Vrms (minimum).

• Current Transfer Ratio (CTR): 50% to 600% (at IF = 5mA, VCE = 5V).

• Input Characteristics: Forward Voltage (VF): 1.2V typical at IF = 20mA.

• Operating Temperature: -30°C to +100°C.

Package Includes

      1 x LTV-817A OPTOISOLATOR 5KV TRANSISTOR 4PIN IC
