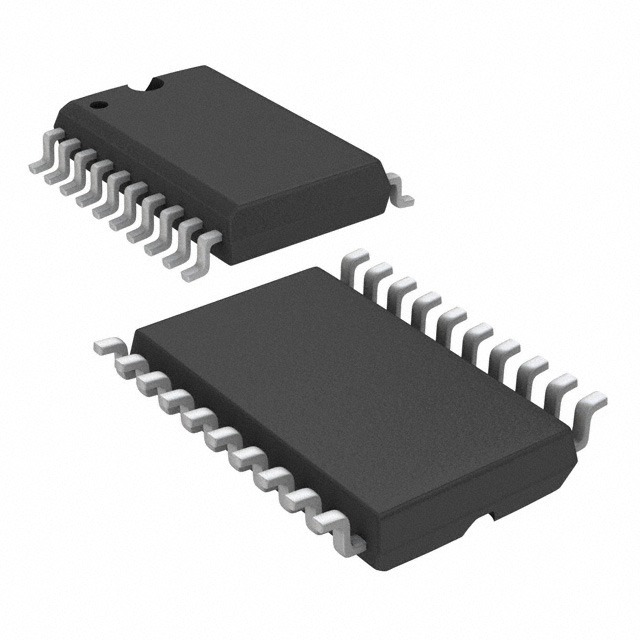

TLC1542C 10-Bit Analog-To-Digital Converters With Serial Control IC

TLC1542C 10-Bit Analog-To-Digital Converters With Serial Control IC

The  TLC1542C are  CMOS 10-bit  switched-capacitor  successive-approximation analog-to-digital converters. These devices have three inputs   and   a   3-state   output   [chip   select   (CS),input-output   clock   (I/O   CLOCK),   address   input(ADDRESS),   and   data   output   (DATA   OUT)]   that provide a direct 4-wire interface to the serial port of a host processor. These devices allow high-speed data transfers from the host. In addition to a high-speed A /D converter and versatile control  capability,  these  devices  have  an  on-chip 14-channel multiplexer that can select any one of 11 analog  inputs  or  any  one  of  three  internal  self-test voltages. The sample-and-hold function is automatic. At  the  end  of  A /D  conversion,  the  end-of-conversion(EOC) output goes high to indicate that conversion is complete.

DNA solutions, Nashik has various types of IC 's. Check out our complete collection of IC's.

• 10-Bit Resolution A/D Converter


• 11 Analog Input Channels


• Three Built-In Self-Test Modes


• Inherent Sample-and-Hold Function


• Total Unadjusted Error...±1 LSB Max


• On-Chip System Clock


• End-of-Conversion (EOC) Output


• Terminal Compatible With TLC542


• CMOS Technology


Specifications of TLC1542C 10-Bit Analog-To-Digital Converters With Serial Control IC

• Data Acquisition Systems: Converts analog signals to frequency for digital data acquisition systems, often used in remote sensor applications.

• Telemetry Systems: Used for transmitting analog signals over long distances in a frequency-encoded format for robust, noise-immune data transmission.

• Control Systems: Monitors and controls various processes by converting analog sensor outputs (such as temperature, pressure, and speed) to a frequency signal that can be processed digitally.

• Frequency Modulation (FM) Systems: Suitable for use in FM modulation systems where analog signals need to be represented as frequency-modulated signals.

• Industrial Automation: Converts sensor data into frequency signals for process monitoring and control in industrial systems.

Package Includes

• 1 x TLC1542C 10-Bit Analog-To-Digital Converters With Serial Control IC
