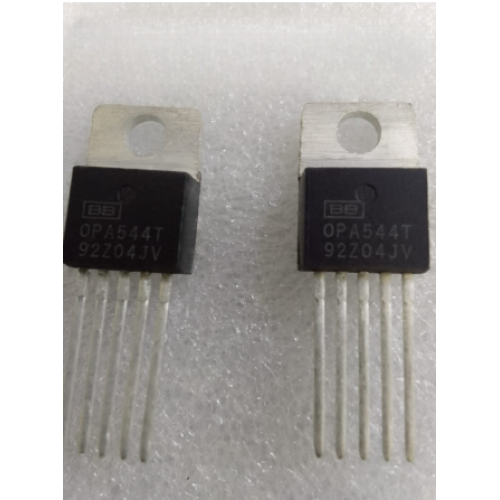

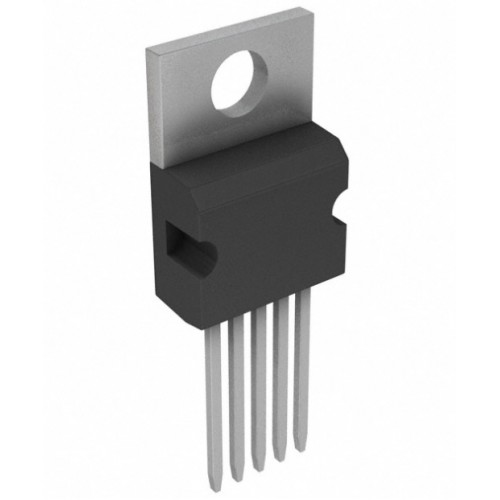

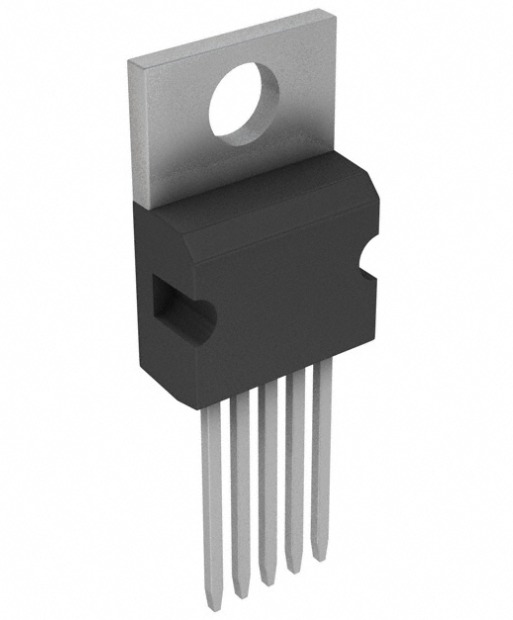

OPA544T Power Amplifier MOSFET 1 Circuit TO-220-5


Write a review | 1 reviews

  • Stock: 3

    Availability: InStock priceValidUntil: 2026-10-07

  • SKU: 8574 | DAG178

Availability: InStock priceValidUntil: 2026-10-07

  • Rs. 2,063.69 (inc GST)
    Rs.1,748.89 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Texas Instruments OPA544T Power Amplifier MOSFET

OPA544T Power Amplifier MOSFET delivers 2A output current, operates on ±10V to ±35V, and features a slew rate of 8V/µs.

The Texas Instruments OPA544T Power Amplifier MOSFET is a robust solution for demanding applications. It provides a minimum output current of 2A, making it ideal for driving low-impedance loads. The device operates within a wide power supply range of ±10V to ±35V, ensuring compatibility with various system requirements. Its fast slew rate of 8V/µs allows for rapid response to input changes, making it suitable for applications like motor speed controllers and servo amplifiers.

With a gain bandwidth product of 1.4MHz, the OPA544T Power Amplifier MOSFET supports a wide range of frequency applications. This 5-pin TO-220 package is designed for through-hole mounting, making installation straightforward. Its low input bias current of 15pA and low input offset voltage of 1mV enhance precision in performance, making it a reliable choice for power supplies and bridge amplifiers.

Explore the versatility of the OPA544T Power Amplifier MOSFET for your electronic projects. Its ability to handle challenging loads with ease makes it a top choice for engineers and hobbyists alike. This component is readily available for purchase online, ensuring you can get it delivered anywhere in India.

Discover the power of MOSFET & IGBT components at DNA. The Texas Instruments brand offers reliable solutions in this category. Check other MOSFET & IGBT that we have in stock.

At DNA, we cater to all your electronic component needs. If you can't find specific parts, we can import them for you. We support both retail and bulk orders. Explore related items like Nextion Display, Power Supply, Diode, IGBT, Analog IC, and Inductor. Contact Us.

Features of Texas Instruments OPA544T Power Amplifier MOSFET

  • High Output Current: Minimum of 2A
  • Wide Power Supply Range: ±10V to ±35V
  • Slew Rate: 8V/µs
  • Gain Bandwidth Product: 1.4MHz

Specification of Texas Instruments OPA544T Power Amplifier MOSFET

  • Amplifier Type: Power
  • Number of Channels: 1
  • Output Type: Single-ended
  • Input Bias Current: 15pA
  • Input Offset Voltage: 1mV
  • Supply Current: 12mA
  • Maximum Output Current per Channel: 4A
  • Operating Temperature Range: -40°C to +85°C

Applications of Texas Instruments OPA544T Power Amplifier MOSFET

  • Motor Speed Controllers
  • Servo Amplifiers
  • Power Supplies
  • Bridge Amplifiers

Related Links for Texas Instruments OPA544T Power Amplifier MOSFET

Package Includes

  • 1 X Texas Instruments OPA544T Power Amplifier MOSFET
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
