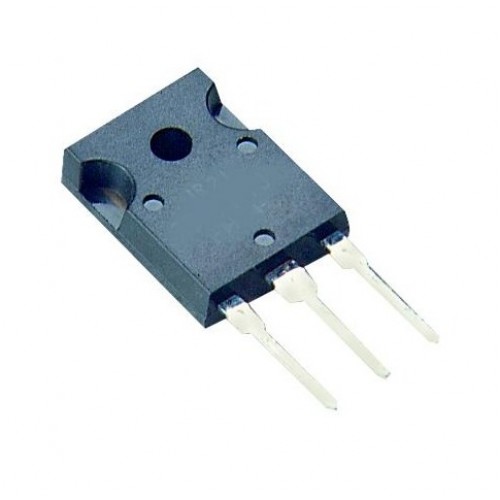

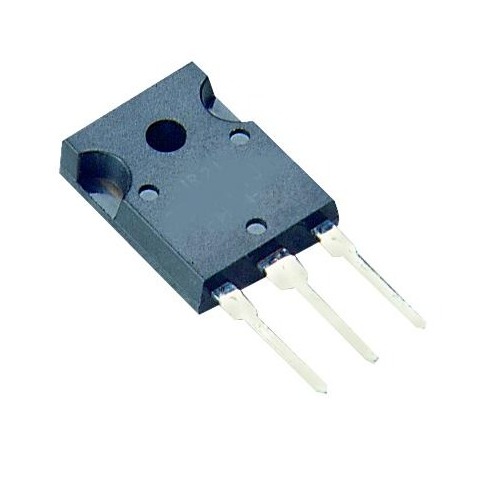

Product Images are shown for illustrative purposes only and may differ from actual product.
IKW75N65EH5 High Speed 5th Switching IGBT
- Stock: 5
- SKU: 8144 | DAH644
-
Rs. 502.59 (inc GST)
Rs.425.92 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
IKW75N65EH5 High Speed 5th Switching IGBT
IKW75N65EH5 High Speed 5th Switching IGBT
The IKW75N65EH5 is a high-speed 5th-generation Insulated Gate Bipolar Transistor (IGBT) developed by Infineon Technologies. It is optimized for high-frequency switching applications, offering a balance between low conduction and switching losses. The device integrates a free-wheeling diode to enhance efficiency in hard-switching environments, making it suitable for industrial, renewable energy, and motor drive applications.
DNA solutions, Nashik has various types of IGBT's. Check out our complete collection of IGBT's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of IKW75N65EH5 High Speed 5th Switching IGBT
- High-Speed Switching: Optimized for frequencies up to 20 kHz
- Low Loss Performance: Reduced switching and conduction losses for better efficiency
- Integrated Soft Recovery Diode: Ensures minimal electromagnetic interference (EMI) during switching
- Rugged Design: Offers high reliability with robust short-circuit and overcurrent capabilities
- High Collector-Emitter Voltage (VCE): Rated up to 650 V
Specifications of IKW75N65EH5 High Speed 5th Switching IGBT
- Collector-Emitter Voltage (VCE): 650 V
- Continuous Collector Current (IC): 75 A
- Pulsed Collector Current (ICM): 150 A
- Gate-Emitter Voltage (VGE): ±20 V
- Power Dissipation (PD): Up to 312 W
- Switching Frequency: Up to 20 kHz
- Typical Turn-On Delay Time: ~25 ns
- Typical Turn-Off Delay Time: ~100 ns
- Operating Temperature Range: -55°C to +175°C
- Package: TO-247
Applications of IKW75N65EH5 High Speed 5th Switching IGBT
- Industrial Inverters
- Renewable Energy
- Power Supplies
- Electric Vehicles
- Welding Equipment
Package Includes
1 x IKW75N65EH5 High Speed 5th Switching IGBT
