Product Images are shown for illustrative purposes only and may differ from actual product.

UV LED 5mm

  • Stock: 50
  • SKU: 1277 | DAB193
  • Rs. 5.90 (inc GST)
    Rs.5.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

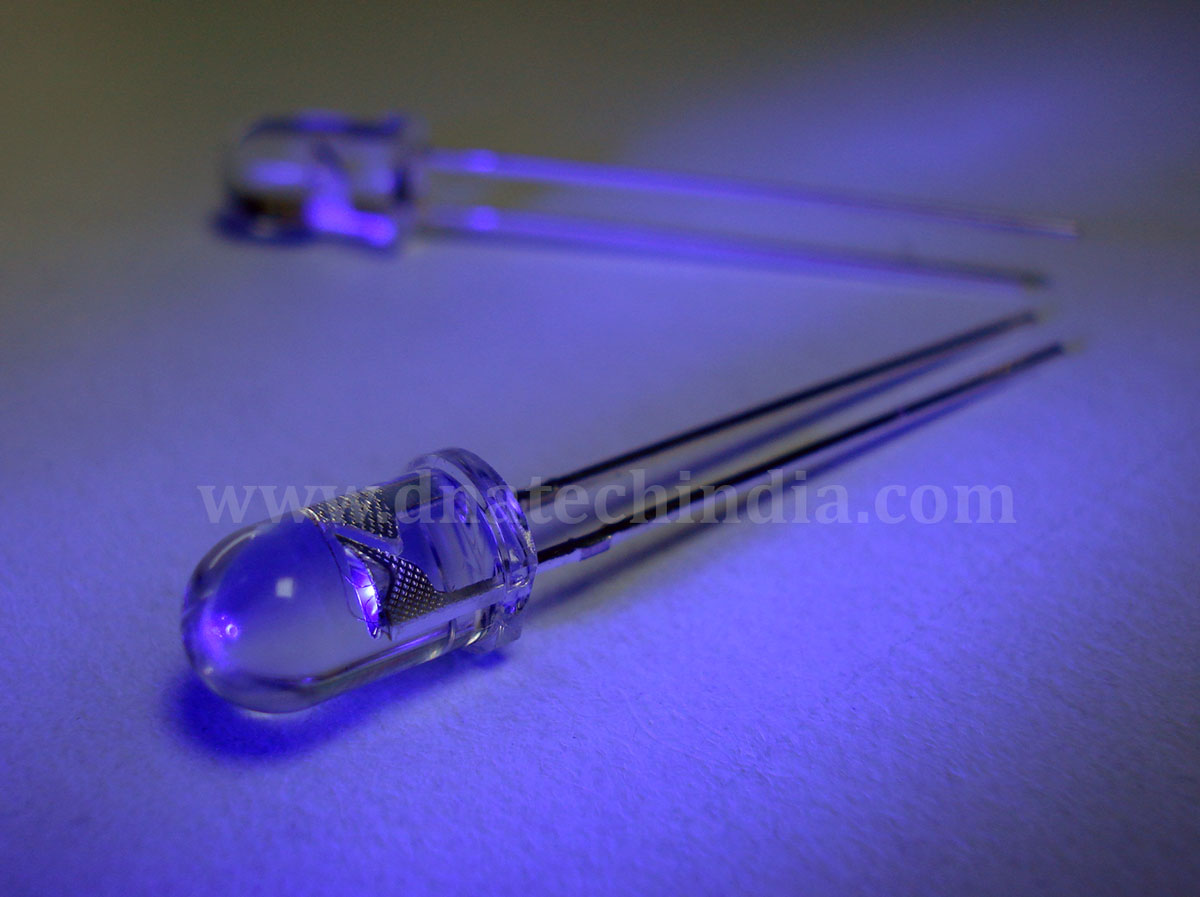

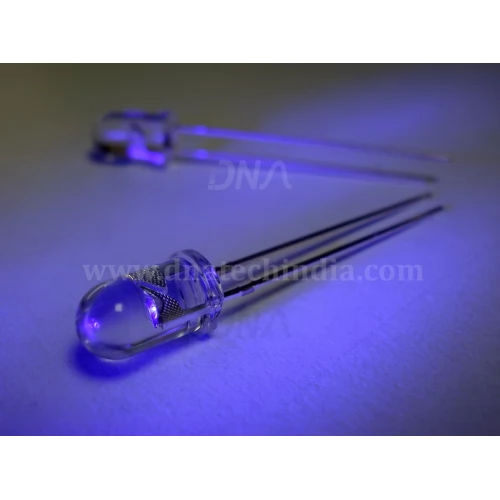

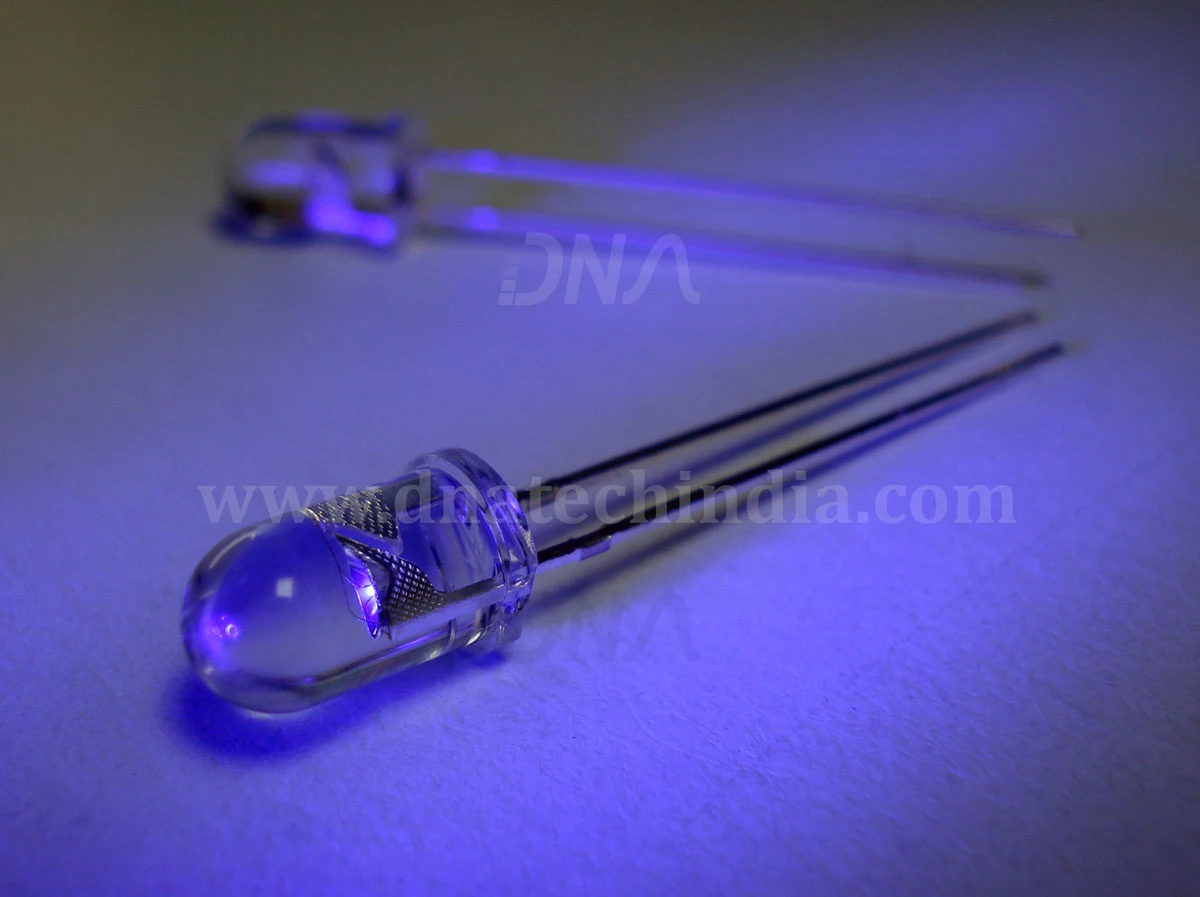

5mm UV LED

This is a high quality 5mm Ultra Violet LED.

This UV led have a wavelength of 390 to 400 nm. It can be used in various applications like insect Trap, UV curing & for disinfection purpose as well.

It also works  as a "black" light to make objects fluoresce and for recharging glow-in-the-dark materials. A great bargain!

Features of UV LED

  • Emitted Colour : Ultra violet (UV)
  • Size (mm) : 5mm
  • Lens Colour : Water Clear Peak
  • Wave Length (nm) : 390-400nm
  • Luminous Intensity Typ Iv (mcd) : 1000
  • Life Rating : 100,000 Hours
  • Viewing Angle : 120 - 140 Degree
  • Absolute Maximum Ratings (Ta=25°C)
  • Reverse Voltage : 5~6V
  • Lead Soldering Temperature : 240°C ( less than5Sec)
  • Operating Temperature Range : -25°C - +85°C
  • Preservative Temperature Range : -30°C - +100°C

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
