UV LED 5mm
- Stock: 26 InStock
- SKU: 1277 | DAB193
-
Rs.
5.90 (inc GST)
Rs.5.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.

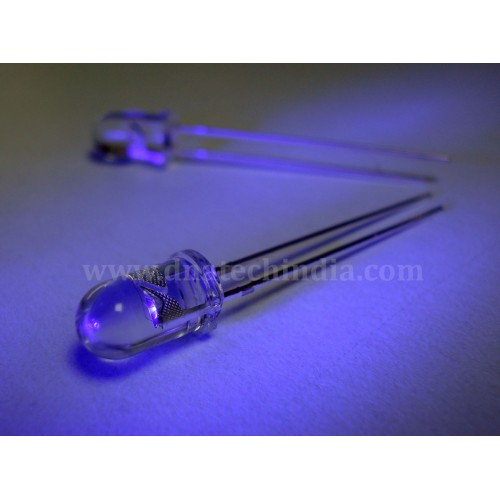

5mm UV LED
This is a high quality 5mm Ultra Violet LED.
This UV led have a wavelength of 390 to 400 nm. It can be used in various applications like insect Trap, UV curing & for disinfection purpose as well.
It also works as a "black" light to make objects fluoresce and for recharging glow-in-the-dark materials. A great bargain!
Features of UV LED
- Emitted Colour : Ultra violet (UV)

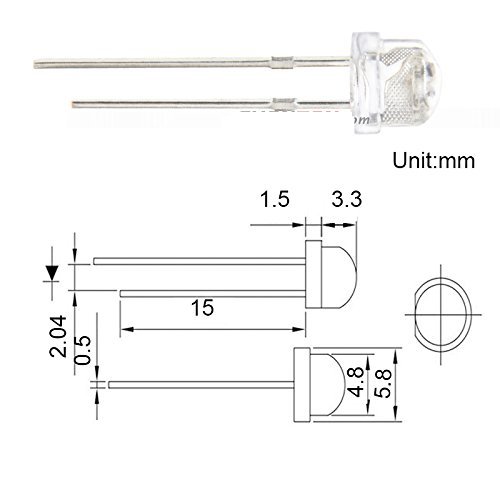

- Size (mm) : 5mm
- Lens Colour : Water Clear Peak
- Wave Length (nm) : 390-400nm
- Luminous Intensity Typ Iv (mcd) : 1000
- Life Rating : 100,000 Hours
- Viewing Angle : 120 - 140 Degree
- Absolute Maximum Ratings (Ta=25°C)
- Reverse Voltage : 5~6V
- Lead Soldering Temperature : 240°C ( less than5Sec)
- Operating Temperature Range : -25°C - +85°C
- Preservative Temperature Range : -30°C - +100°C
