Waveshare 3.2inch RPi LCD (B), 320×240

Waveshare 3.2inch RPi LCD (B), 320×240

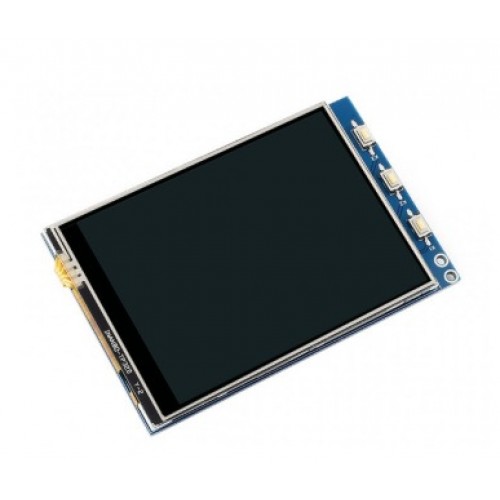

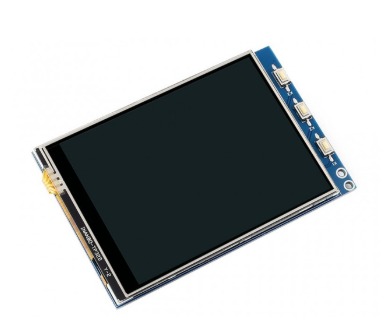

This Waveshare 3.2inch RPi LCD (B) 320×240 is an ideal alternative solution for HDMI monitors. It supports any revision of Raspberry Pi and it can be directly plugged onto the RPi board, combined with the portable power this module is a convenient Men-Machine interface for Raspberry Pi.

Driver for the touch screen display is provided along with it so that it works with custom Raspbian directly. As it supports the Raspbian system it could enable your Pi to play videos and take photos on just a touch. Additionally, it provides 17 different camera modes and support for software keyboard aiding system interaction without mouse or keyboard. The product comes in a sporty outlook with high-quality immersion gold surface plating.

DNA solutions, Nashik has various types of Waveshare's display. Check out our complete collection of Waveshare's display.

• Display Specifications:

  • Size: 3.2 inches
  • Resolution: 320x240 pixels (QVGA)
  • Color Depth: 65K (16-bit RGB)
  • Type: TFT LCD
  • Backlight: LED, adjustable brightness.

• Touchscreen:

  • Type: Resistive or Capacitive (depending on the variant).
  • Touch Interface: SPI for resistive or I2C for capacitive versions.
  • Supports single-point touch.

• Interface:

  • SPI Interface: Ensures compatibility with Raspberry Pi boards and fast communication.
  • Onboard Controller: XPT2046 (for resistive touch) or other controllers (for capacitive touch).

• Compatibility:

  • Compatible with Raspberry Pi models (e.g., Pi 4, Pi 3, Pi Zero) via GPIO or display headers.
  • Plug-and-play with preconfigured drivers for Raspberry Pi OS.

• Power Supply:

  • Powered directly via the Raspberry Pi's GPIO pins, no external power required.

Applications of Waveshare 3.2inch RPi LCD (B), 320×240

• Portable Projects:

  • Ideal for creating handheld or portable Raspberry Pi projects.
  • Suitable for headless applications where direct display output is required.

• IoT and Embedded Systems:

  • Used in IoT applications as a small graphical user interface for real-time monitoring and control.

• Education and Learning:

  • Great for beginners to learn interfacing with small displays and building simple GUIs.
  • Useful in DIY electronics and coding workshops.

• Custom GUIs:

  • Used in projects that require custom interfaces for device interaction, such as media players, small kiosks, or control panels.

• System Monitoring:

  • Can act as a system status monitor, displaying metrics like CPU usage, temperature, and network statistics.

Package Includes

1 x Waveshare 3.2inch RPi LCD (B), 320×240
