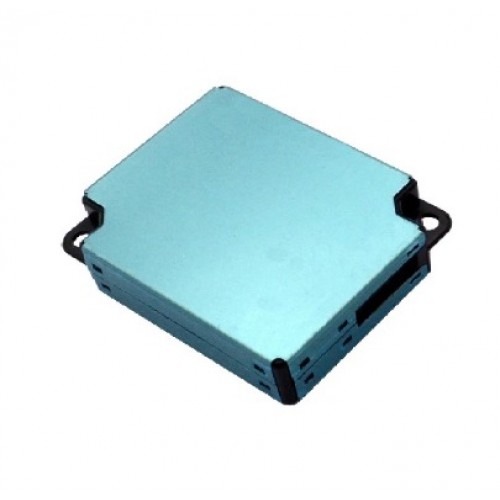

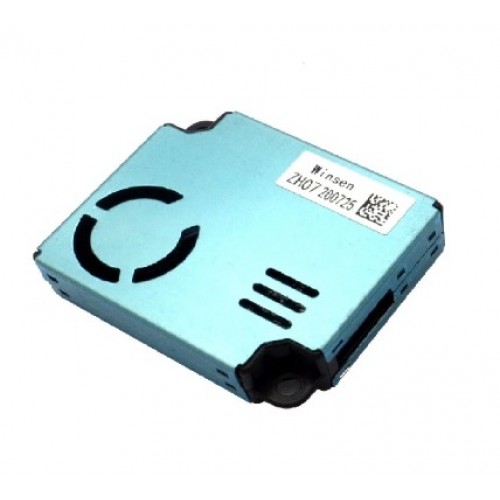

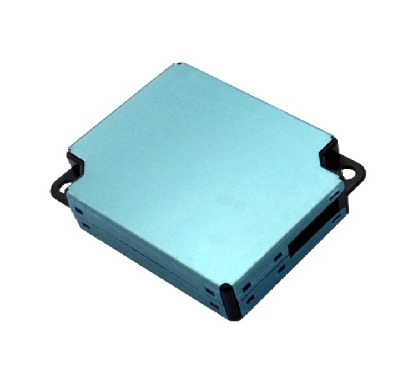

Winsen ZH07 Laser Dust Sensor Module with UART TTL and PWM

  • Stock: 10

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Winsen
  • SKU: 8999 | DAI072

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 1,516.71 (inc GST)
    Rs.1,285.35 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Winsen ZH07 Laser Dust Sensor Module with UART TTL and PWM

Winsen ZH07 laser dust sensor module detects airborne particles across 0–1000 µg/m³ and provides UART TTL and PWM outputs at 4.8–5.5 V DC.

The Winsen ZH07 Laser Dust Sensor Module measures airborne dust concentration using laser scattering. It covers an effective concentration range of 0–1000 µg/m³ and supports air quality monitoring equipment with UART TTL and PWM outputs.
Its dual output options let a system read measurements through a serial link or a PWM signal. The module detects particles from 0.3 to 10 µm and has a configurable power-saving mode through its SET pin. These features support flexible use in embedded air quality systems.
Use the ZH07 in air purifiers, ventilation systems, portable instruments and air conditioners. It can also support smart home air monitoring, where dust readings help track indoor air conditions.
DNA stocks the Winsen ZH07 for air quality sensing projects and equipment. Browse our GAS and Air Quality Sensor range for more parts. Check other GAS and Air Quality Sensor that we have in stock
If you cannot find a part, contact DNA for import support. We support Indian electronics buyers with retail and bulk orders. You can also browse Maduino, ADC & DAC, Inductors, Motor Driver Modules and Voltage Regulators. Contact Us

Features of Winsen ZH07 Laser Dust Sensor Module with UART TTL and PWM

  • Uses laser scattering to detect airborne dust
  • Offers UART TTL and PWM output options
  • Supports configurable power-saving mode through the SET pin

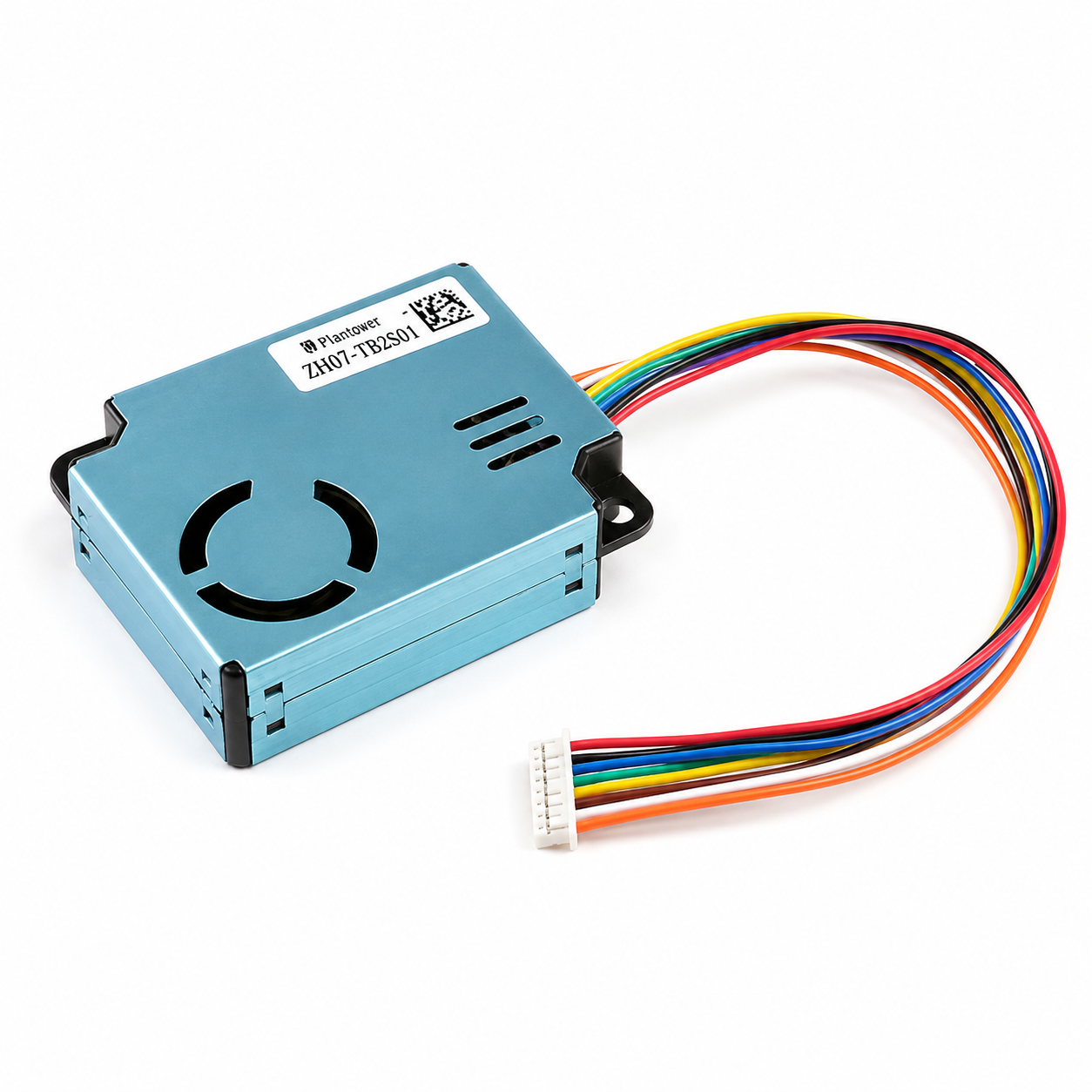

  • Uses an 8-pin JST connector for system wiring

Specifications of Winsen ZH07 Laser Dust Sensor Module with UART TTL and PWM

  • Effective concentration range: 0–1000 µg/m³
  • PM2.5 detection accuracy: ±15 µg/m³ from 0–100 µg/m³ and ±15% of reading from 101–1000 µg/m³ (at 25 ± 2 °C and 50 ± 10% RH)
  • Working voltage: 4.8–5.5 V DC
  • Working current: <120 mA
  • Output: UART TTL and PWM, 3.3 V level by default
  • Working temperature: −10 to 60 °C
  • Working humidity: 0–80% RH, no condensation
  • Dimensions: 48 × 40 × 12.5 mm (L × W × H)

Applications of Winsen ZH07 Laser Dust Sensor Module with UART TTL and PWM

  • Air purifiers
  • Ventilation systems
  • Portable instruments
  • Air quality monitoring equipment

Related Links for Winsen ZH07 Laser Dust Sensor Module with UART TTL and PWM

Package Includes

  • 1 X Winsen ZH07 Laser Dust Sensor Module with UART TTL and PWM
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
