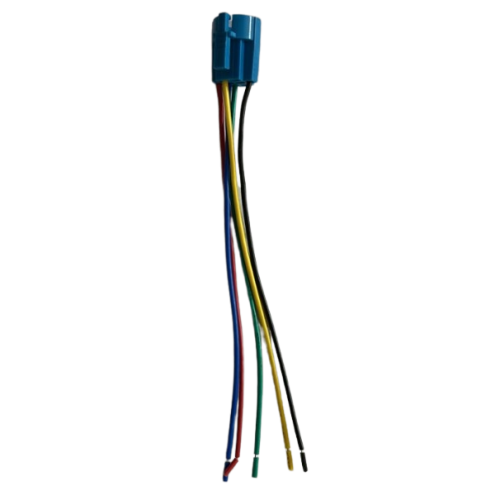

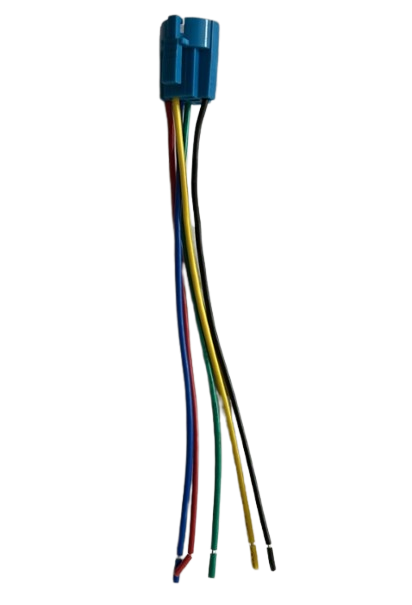

Wiring Harness for SS22 Switch


Write a review | 1 reviews

  • Stock: 10

    Availability: InStock priceValidUntil: 2026-09-20

  • SKU: 8617 | DAH910

Availability: InStock priceValidUntil: 2026-09-20

  • Rs. 118.00 (inc GST)
    Rs.100.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Wiring Harness for SS22 Switch - 22mm Connector Cable Set

Wiring Harness for SS22 Switch with 5-pin female socket, 22 AWG wire, and supports 12V/24V systems.

The Wiring Harness for SS22 Switch is a ready-to-use connector cable designed for 22mm SS series push button switches. This harness allows for quick connections to 5-pin switches (NO/NC + LED), eliminating the need for manual soldering. Ideal for industrial panels and automation systems, it features durable wires with pre-crimped terminals, ensuring reliable connections for both switch signals and LED indicators.

With its plug-and-play design, the Wiring Harness for SS22 Switch supports switch types for both 12V and 24V systems. The flexible, insulated copper wires are color-coded for easy identification, which saves time during assembly and enhances reliability in custom electronic projects.

Applications for the Wiring Harness for SS22 Switch include industrial control panels, DIY electronics, and home automation systems. This wiring harness streamlines your projects while ensuring robust performance and safety.

Explore high-quality wiring solutions at DNA. The Wiring Harness for SS22 Switch is perfect for your automation needs. Discover more in the Switches & Keypad category. Check other Switches & Keypad that we have in stock.

If you are looking for specific electronic components, reach out to us. We can help you find parts like Nextion Displays, Analog ICs, or Sensor Modules. We also support retail and bulk orders. Contact Us

Features of Wiring Harness for SS22 Switch

  • Plug-and-play harness for 22mm metal push button switches
  • Compatible with 5-pin switches (NO/NC + LED)
  • Color-coded wires for easy identification
  • Saves time during panel assembly or prototyping
  • Durable PVC insulation with flexible wiring
  • Supports both 12V and 24V LED indicator switches

Specification of Wiring Harness for SS22 Switch

  • Connector Type: 5-pin female socket
  • Wire Gauge: 22 AWG (approx.)
  • Wire Length: Approx. 20cm
  • Material: Tinned Copper with PVC insulation
  • Operating Voltage: 12V / 24V DC
  • Operating Temperature: -20°C to 80°C

Applications of Wiring Harness for SS22 Switch

  • Industrial Control Panels
  • Automation Systems & Interfaces
  • DIY Electronics Projects
  • Prototyping & Testing Equipment
  • Home Automation Switch Boards
  • Signal Switching & Indicator Circuits

Related Links for Wiring Harness for SS22 Switch - 22mm Connector Cable Set

Package Includes

  • 1 X Wiring Harness for SS22 Switch
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
