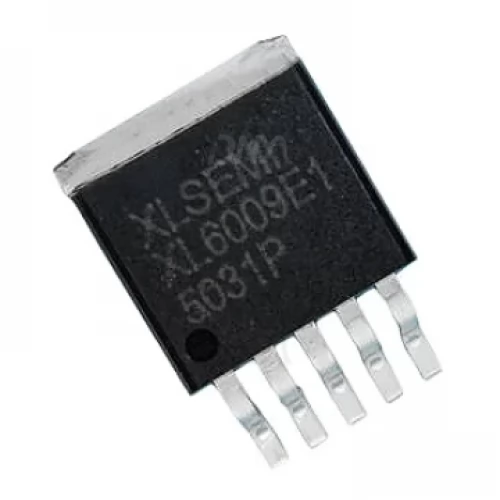

XL6009 IC

  • Stock: Out Of Stock
  • Brand: XL Semi
  • SKU: 1146 | DAB616
  • Rs. 82.60 (inc GST)
    Rs.70.00 + GST

    Qty :

  • Quantity Pricing (inc GST)

    5 + 78.47 10 + 74.34 20 + 70.21 50 + 64.90 100 + 59.00

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

XL6009 IC

XL6009 Regulator IC

The XL6009 regulator is a wide input range, current mode, DC/DC converter which is capable of generating either positive or negative output voltages.

It can be configured as either a boost, flyback, SEPIC or inverting converter. The XL6009 built in N-channel power MOSFET and fixed frequency oscillator, current-mode architecture results in stable operation over a wide range of supply and output voltages. The XL6009 regulator is special design for portable electronic equipment applications.

This is the main chip that is used in the XL6009 Module. If you require in bulk quantity or there is regular requirements then drop us an email.

Features of XL6009 DC to DC Converter IC

  • Wide 5 Volt to 32 Volt Input Voltage Range
  • Positive or Negative Output Voltage Programming with a Single Feedback Pin
  • Current Mode Control Provides Excellent Transient Response
  • 1.25V reference adjustable version
  • Fixed 400KHz Switching Frequency
  • Maximum 4A Switching Current
  • SW PIN Built in Over Voltage Protection
  • Excellent line and load regulation
  • EN PIN TTL shutdown capability
  • Internal Optimize Power MOSFET
  • High efficiency up to 94%
  • Built in Frequency Compensation
  • Built in Soft-Start Function
  • Built in Thermal Shutdown Function
  • Built in Current Limit Function
  • Available in TO263-5L package

Applications of XL6009 IC

  • EPC / Notebook Car Adapter
  • Automotive and Industrial Boost / Buck-Boost / Inverting Converters
  • Portable Electronic Equipment
