Product Images are shown for illustrative purposes only and may differ from actual product.

XLSEMI XL6009E1 Adjustable Switching DC/DC Converter

  • Stock: 50

    Availability: InStock priceValidUntil: 2026-12-18

  • Brand: XL Semi
  • SKU: 1146 | DAB616

Availability: InStock priceValidUntil: 2026-12-18

  • Rs. 42.48 (inc GST)
    Rs.36.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

XLSEMI XL6009E1 Adjustable Switching DC/DC Converter

XL6009E1 adjustable switching DC/DC converter with 5–32 V input, 400 kHz typical switching and boost, buck-boost, flyback, SEPIC or inverting configurations.

The XLSEMI XL6009E1 is an adjustable switching DC/DC converter for designs that need a flexible way to change voltage. It accepts a 5–32 V input and can be configured for boost, buck-boost, flyback, SEPIC or inverting operation. This makes it a useful configurable DC/DC converter for power circuits.
Current-mode control and a built-in power MOSFET reduce the number of external switching parts. Soft start, current limit and thermal shutdown support controlled startup and fault response. The feedback pin can set positive or negative output voltage, while the enable pin supports TTL shutdown control. Its 400 kHz switching frequency suits compact power-conversion designs.
Use this XL6009E1 switching converter in EPC or notebook car adapters, automotive and industrial converters, and portable electronic equipment. The TO263-5L package suits board-level power circuits that need a choice of conversion topology.
DNA offers XLSEMI components for engineers and electronics buyers seeking Voltage Regulators for power-conversion designs. Browse this category for parts used in new builds, repairs and production. Check other Voltage Regulators that we have in stock
If you cannot find a part, contact DNA for import support and help with retail or bulk orders. You can also ask about Development boards, Power Supply and DC to DC Converter IC. Contact Us

Features of XLSEMI XL6009E1 Adjustable Switching DC/DC Converter

  • Current-mode control with a built-in N-channel power MOSFET
  • Positive or negative output voltage programming through one feedback pin
  • Soft start and frequency compensation support controlled operation
  • Current limit and thermal shutdown are built in
  • Enable pin supports TTL shutdown control
  • Switch-pin overvoltage protection is built in

Specifications of XLSEMI XL6009E1 Adjustable Switching DC/DC Converter

  • Operating input voltage: 5 to 32 V
  • Switching frequency: 400 kHz typical, 320 kHz minimum and 480 kHz maximum
  • Switch current limit: 4 A typical at VFB = 0
  • Maximum efficiency: Up to 94%

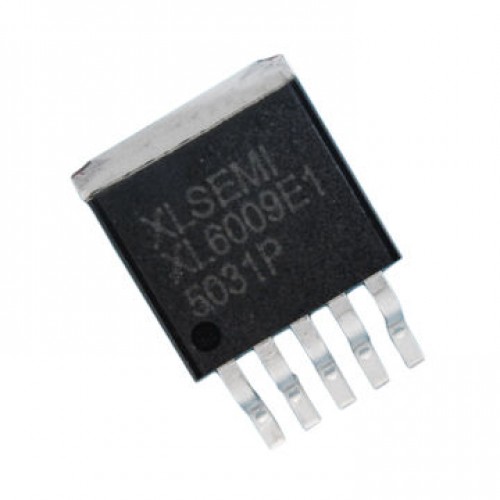

  • Package: TO263-5L
  • Operating junction temperature: -40 to 125 °C
  • Internal power MOSFET on-resistance: 110 mΩ typical, 120 mΩ maximum at Vin = 12 V and ISW = 4 A

Applications of XLSEMI XL6009E1 Adjustable Switching DC/DC Converter

  • EPC and notebook car adapters
  • Automotive and industrial boost, buck-boost or inverting converters
  • Portable electronic equipment

Related Links for XLSEMI XL6009E1 Adjustable Switching DC/DC Converter

Package Includes

  • 1 X XLSEMI XL6009E1 Adjustable Switching DC/DC Converter
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
