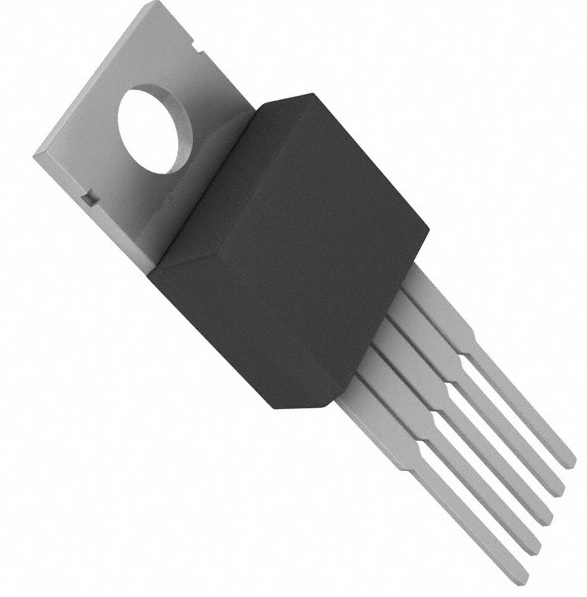

XL6012 DC to DC Boost IC

180KHz 60 Volts 5 Ampere Switching Current Boost DC to DC Converter

The XL6012 regulator is a wide input range, current mode, DC to DC Boost converter which is can be configured as either a boost, flyback, SEPIC or inverting converter. The XL6012 built in high voltage N-channel power MOSFET and fixed frequency oscillator, current-mode architecture results in stable operation over a wide range of supply and output voltages. The XL6012 regulator is special design for portable electronic equipment applications.

Features of XL6012 DC to DC Boost IC

• Wide 5 Volt to 40 Volts Input Voltage Range

• Maximum Boost Output Up to 60 Volts

• Current Mode Control Provides Excellent

• Transient Response

• 1.25 Volts reference adjustable version

• Fixed 180KHz Switching Frequency

• Maximum 5 Ampere Switching Current

• SW PIN Built in Over Voltage Protection

• Excellent line and load regulation

• EN PIN TTL shutdown capability

• Internal Optimize Power MOSFET

• High efficiency up to 94%

• Built in Frequency Compensation

• Built in Soft-Start Function

• Built in Thermal Shutdown Function

• Built in Current Limit Function

• Available in TO220-5L package

Applications of XL6012 Boost IC

• EPC / Notebook Car Adapter

• Automotive and Industrial Boost.

• Buck-Boost / Inverting Converters

• Portable Electronic Equipment
