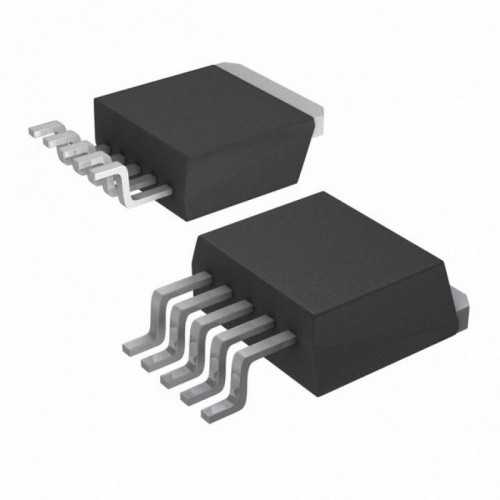

XL2576 12V 52KHz Buck DC/DC Converter TO263 IC

XL2576 12V 52KHz Buck DC Converter TO263 IC

The XL2576 is a 52 KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 3A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator.

The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An enable function, an over current protection function is built inside. An internal compensation block is built in to minimize external component count.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

• The input voltage range of the XL2576S-12E1 is 4.5V to 40V, with 5V, 12V and adjustable versions.


• The output can be adjusted from 1.23V to 37V.


• The XL2576S-12E1 has a fixed switching frequency of 52KHz.


• The constant output current is 3A.


• Power transistors can also be optimized internally.


• Excellent line and load regulation.


• This product also has built-in: thermal shutdown function and current limiting function


Specifications of XL2576 12V 52KHz Buck DC/DC Converter TO263 IC

• Input Voltage Range: 4.0V to 40V DC

• Output Voltage: Adjustable; typically configured for 12V

• Output Current: Up to 3A

• Switching Frequency: 52kHz (fixed)

• Efficiency: Up to 90% (depending on input/output voltage and load)

• Output Voltage Tolerance: ±2% of the nominal output

Package Includes

• 1 x XL2576 12V 52KHz Buck DC/DC Converter TO263 IC
