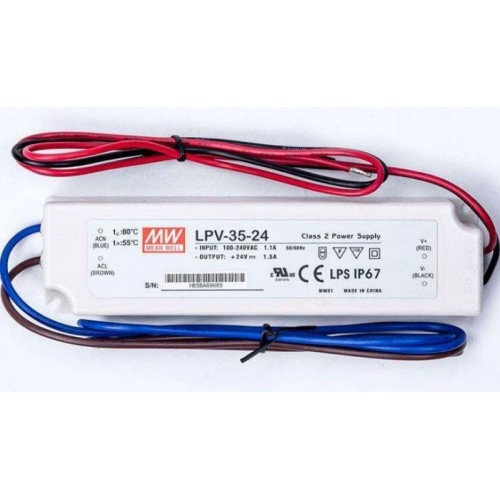

Mean Well LPV-35-24 36W Single-Output AC-DC Power Supply
LPV-35-24 single-output AC-DC power supply with 24 V, 1.5 A output, 36 W rated power and IP67-level encapsulation.
Features of Mean Well LPV-35-24 36W Single-Output AC-DC Power Supply
- Constant-voltage design for compatible DC loads
- Fully encapsulated construction
- Hiccup-mode overload protection recovers after fault removal
- Over-voltage protection shuts down the output until power is cycled
- Free-air convection cooling
Specifications of Mean Well LPV-35-24 36W Single-Output AC-DC Power Supply
- DC output voltage: 24 V
- Rated output current: 1.5 A
- Rated output power: 36 W
- Input voltage range: 90–264 VAC or 127–370 VDC
- Input frequency range: 47–63 Hz
- Output voltage tolerance: ±5.0%, including setup tolerance, line regulation and load regulation
- Ripple and noise: 150 mVp-p maximum, measured at 20 MHz bandwidth with a 12-inch twisted pair and parallel 0.1 µF and 47 µF capacitors
- Operating temperature: −30 to +75 °C, with load derating based on the derating curve
Applications of Mean Well LPV-35-24 36W Single-Output AC-DC Power Supply
- LED lighting
- Moving signs
Related Links for Mean Well LPV-35-24 36W Single-Output AC-DC Power Supply
Package Includes
- 1 X Mean Well LPV-35-24 36W Single-Output AC-DC Power Supply
