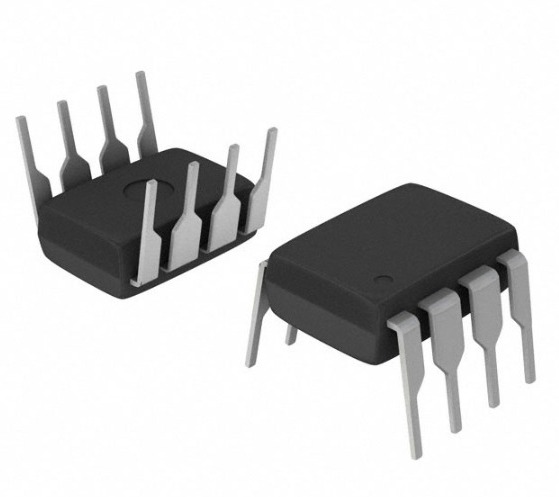

Product Images are shown for illustrative purposes only and may differ from actual product.

CA3080E Transconductance Amplifier IC

Write a review | 3 reviews

Stock: Out Of Stock

SKU: 8063 | DAH189

Rs. 198.24 (inc GST)
Rs.168.00 + GST

Qty :
Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

CA3080E Transconductance Amplifier IC

CA3080E Transconductance Amplifier IC

The CA3080E is a high-gain operational amplifier with a differential input and a single-ended current output. It is designed to function as a transconductance amplifier, where the input voltage controls the output current. This IC is particularly useful for applications where variable gain or signal processing is required. It features an adjustable gain controlled by an external bias current.

DNA solutions, Nashik has various types of Amplifier IC's. Check out our complete collection of Amplifier IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of CA3080E Transconductance Amplifier IC

High Input Impedance: Allows for minimal loading on the input signal source
Wide Dynamic Range: Operates effectively over a broad range of signal amplitudes
Adjustable Gain: Gain can be linearly controlled via an external bias current
Low Power Consumption: Suitable for low-power applications
High-Speed Operation: Capable of operating at high frequencies

Specifications of CA3080E Transconductance Amplifier IC

Power Supply: Voltage Range: ±3V to ±15V
Input Voltage Range: Typically ±12V for ±15V supply
Slew Rate: Typically 50 V/µs
Input Impedance: High (usually in the MΩ range)
Operating Temperature Range: -55°C to +125°C

Applications of CA3080E Transconductance Amplifier IC

Voltage-Controlled Amplifiers (VCAs)
Filters
Analog Multipliers and Modulators
Oscillators
Sample-and-Hold Circuits
Signal Processing
Comparator Circuits

Package Includes

1 x CA3080E Transconductance Amplifier IC

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
