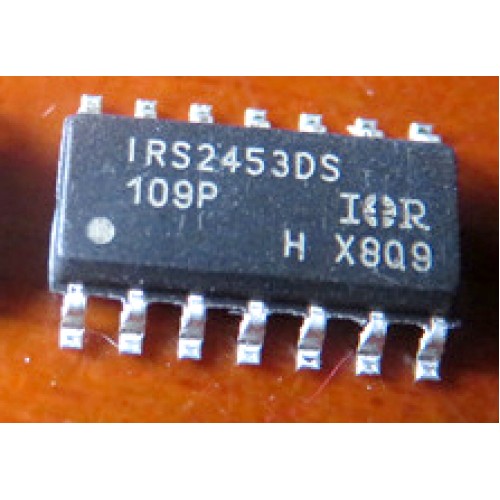

  • IRS2453DS SMD IC

Product Images are shown for illustrative purposes only and may differ from actual product.


  • Rs. 206.50 (inc GST)
    Rs.175.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at"

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.


IRS2453DS Gate Driver IC

The IRS2453DS is based on the  popular  IR2153  self-oscillating  half-bridge  gate  driver IC, and  incorporates  a high  voltage  full-bridge  gate driver  with  a  front end oscillator similar to the industry standard CMOS 555  timer. HVIC  and  latch  immune CMOS  technologies  enable  ruggedized  monolithic  construction.  The  output  driver features a high  pulse  current  buffer  stage  designed  for  minimum  driver cross-conduction.  Noise  immunity  is achieved with low di/dt peak of the gate drivers, and with an under voltage lockout hysteresis greater than 1.5 V. The IRS2453DS also includes latched and non-latched shutdown pins.

Features of IRS2453DS SMD IC

  • Integrated 600 V full-bridge gate driver

  • CT, RT programmable oscillator

  • Micropower startup

  • Logic level latched shutdown pin

  • Internal bootstrap FETs

  • Excellent latch immunity on all inputs & outputs

  • ESD protection on all pins

  • RoHS compliant

Specifications of IRS2453DS SMD IC

  • Mounting Style : SMD/SMT

  • Package/Case : SOIC-Narrow-14

  • Number of Drivers : 4 Driver

  • Output Current : 260 mA

  • Configuration : Inverting, Non-Inverting

  • Rise Time : 200 ns

  • Fall Time : 100 ns

  • Supply Voltage - Max : 16.6 V

  • Supply Voltage - Min : 10 V

  • Minimum Operating Temperature : - 55 C

  • Maximum Operating Temperature : + 150 C

  • Type : High and Low Side

  • Brand : Infineon / IR
