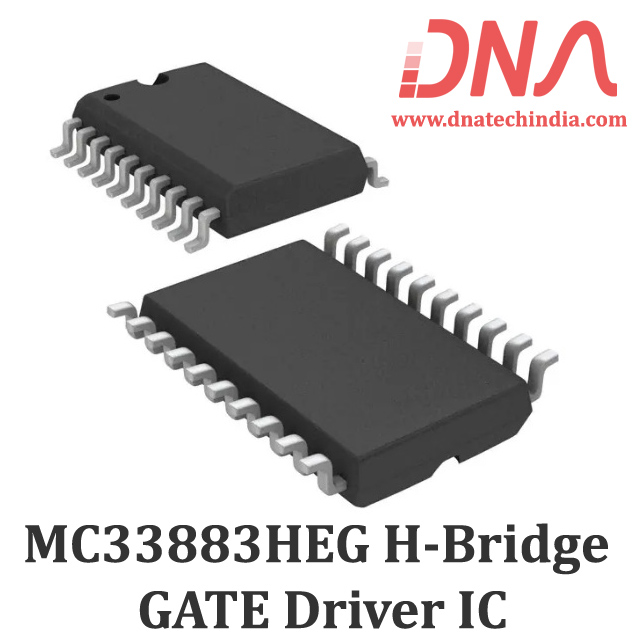

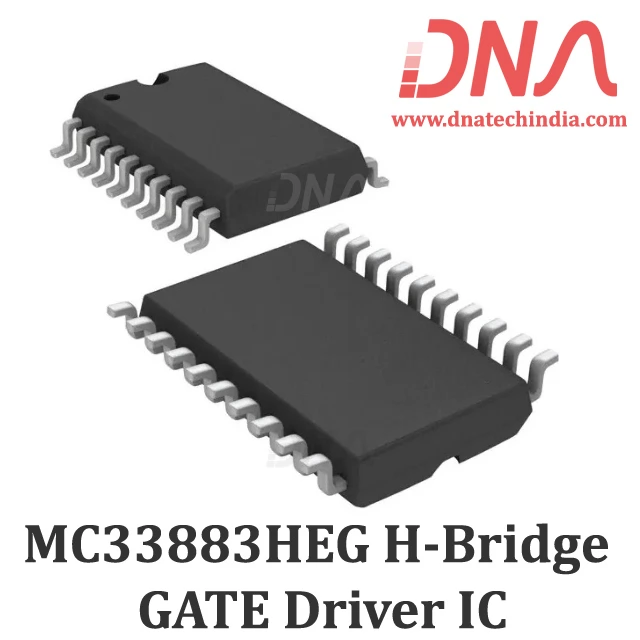

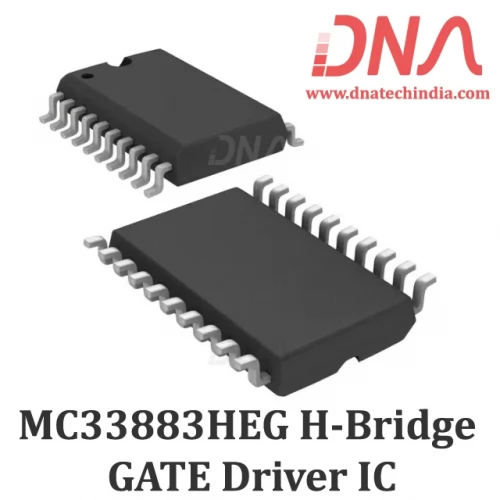

• MC33883HEG H-Bridge GATE Driver IC

Product Images are shown for illustrative purposes only and may differ from actual product.

MC33883HEG H-Bridge GATE Driver IC

  • Stock: 4
  • SKU: 3050 | DAE795

Availability: InStock priceValidUntil: 2025-09-30

  • Rs. 381.14 (inc GST)
    Rs.323.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

MC33883 H-Bridge GATE Driver IC

MC33883HEG H-Bridge GATE Driver IC

The 33883 is an H-bridge gate driver (also known as a full-bridge pre-driver) IC with integrated charge pump and independent high and low side gate driver channels. The gate driver channels of MC33883 IC are independently controlled by four separate input pins, thus allowing the device to be optionally configured as two independent high side gate drivers and two independent low side gate drivers. The low side channels are referenced to ground. The high side channels are floating.

The gate driver outputs can source and sink up to 1.0 A peak current pulses, permitting large gate-charge MOSFETs to be driven and/or high pulse- width modulation (PWM) frequencies to be utilized. A linear regulator is incorporated, providing a 15 V typical gate supply to the low side gate drivers. The MC33883HEG H-Bridge Gate Driver is AEC-Q100 qualified.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of MC33883 H-Bridge GATE Driver IC

  • VCC operating voltage range from 5.5 V up to 55 V
  • VCC2 operating voltage range from 5.5 V up to 28 V
  • CMOS / LSTTL compatible I / O
  • 1.0 A peak gate driver current
  • Built-in high side charge pump
  • Under-voltage lockout (UVLO)
  • Over-voltage lockout (OVLO)
  • Global enable with <10 µA Sleep mode
  • Supports PWM up to 100 kHz
  • Qualified in compliance with AEC-Q100

Applications of MC33883HEG H-Bridge GATE Driver IC

  • Automotive: 12 V to high-voltage battery packs
  • E-bikes, e-scooters
  • Energy Storage Systems (ESS)
  • Uninterruptible Power Supply (UPS)
  • Battery junction box

Package Includes

1 x MC33883HEG H-Bridge GATE Driver IC

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
