Product Images are shown for illustrative purposes only and may differ from actual product.

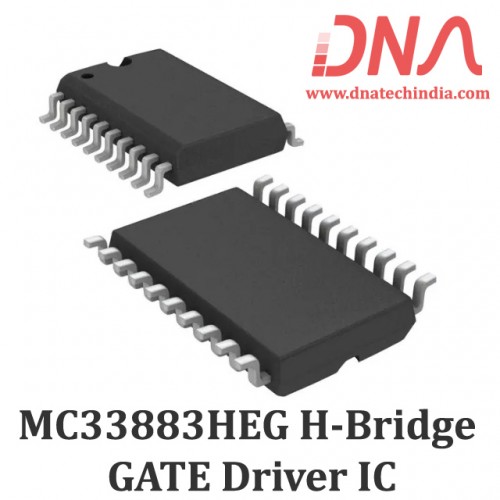

MC33883HEG H-Bridge GATE Driver IC


Write a review | 4 reviews

  • Stock: 4

    Availability: InStock priceValidUntil: 2026-10-08

  • SKU: 3050 | DAE795

Availability: InStock priceValidUntil: 2026-10-08

  • Rs. 381.14 (inc GST)
    Rs.323.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

MC33883 H-Bridge Gate Driver IC

MC33883HEG H-Bridge Driver IC with 1A peak current, supports PWM up to 100 kHz, and features under-voltage lockout.

The MC33883 H-Bridge Gate Driver IC is designed for efficient control in automotive and energy applications. It provides independent high and low side gate drivers, allowing for flexible configurations. This IC can drive large gate-charge MOSFETs and achieve high PWM frequencies, making it ideal for E-bikes and UPS systems. Its robust design includes a built-in charge pump for effective performance.

With a VCC operating voltage range of 5.5V to 55V, the MC33883 H-Bridge Gate Driver IC ensures reliable operation in various conditions. It features under-voltage and over-voltage lockouts for enhanced safety. This AEC-Q100 qualified component is perfect for battery management in energy storage systems.

Applications for the MC33883 H-Bridge Gate Driver IC include automotive systems, e-scooters, and uninterruptible power supplies. Its ability to support PWM up to 100 kHz makes it a versatile choice for modern electronic designs.

Explore the reliability of Power Devices at DNA. The Manufacturer offers high-quality components for your electronic needs. Check other Power Devices that we have in stock.

Are you searching for specific electronic components? At DNA, we can help you find what you need. We can also import parts that are not available. Explore our range including IGBT, Analog IC, Crystal, Resistor, Transistor, and Digital IC. Contact Us.

Features of MC33883 H-Bridge Gate Driver IC

  • 1.0 A peak gate driver current
  • Built-in high side charge pump
  • Under-voltage lockout (UVLO)
  • Over-voltage lockout (OVLO)
  • Supports PWM up to 100 kHz
  • Global enable with <10 µA Sleep mode

Specification of MC33883 H-Bridge Gate Driver IC

  • VCC operating voltage: 5.5 V to 55 V
  • VCC2 operating voltage: 5.5 V to 28 V
  • CMOS / LSTTL compatible I / O

Applications of MC33883 H-Bridge Gate Driver IC

  • Automotive battery management
  • E-bikes and e-scooters
  • Energy Storage Systems (ESS)
  • Uninterruptible Power Supply (UPS)
  • Battery junction box

Package Includes

  • 1 X MC33883HEG H-Bridge GATE Driver IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
