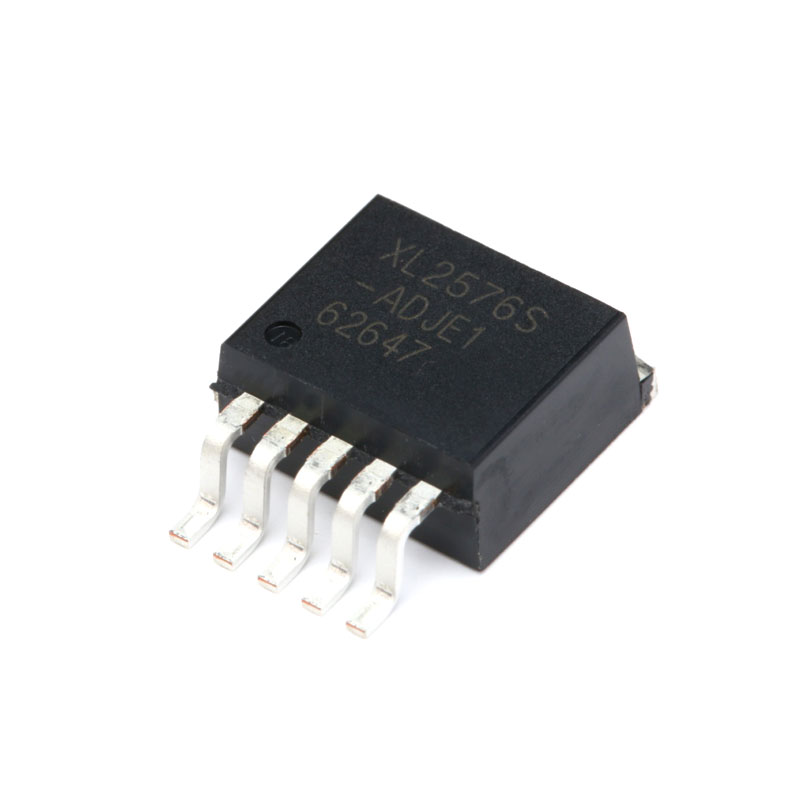

XLSEMI XL2576S-ADJE1 Adjustable PWM Buck DC/DC Converter

Write a review | 3 reviews

Stock: 297
Availability: InStock priceValidUntil: 2026-11-29
Brand: XL Semi
SKU: 7259 | DAF757

Rs. 46.14 (inc GST)
Rs.39.10 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

XLSEMI XL2576S-ADJE1 Adjustable PWM Buck DC/DC Converter

XL2576S-ADJE1 adjustable PWM buck converter, 4.5 V to 40 V input, 1.23 V to 37 V output, up to 3 A.

XLSEMI XL2576S-ADJE1 is an adjustable, fixed-frequency PWM buck converter for step-down DC/DC voltage regulation. It accepts a 4.5 V to 40 V input and supports output settings from 1.23 V to 37 V, with output-current capability up to 3 A. This suits designs that need a regulated lower voltage from a broad DC supply.

The 52 kHz switching frequency and internal frequency compensation help simplify power-stage design. Built-in current limiting and thermal shutdown add protection functions, while the enable pin lets a control circuit switch regulation on or off. Its TO263-5L package supports board-level power conversion with a surface-mount device.

Use this adjustable buck converter in LCD monitors and TVs, digital photo frames, set-top boxes, ADSL modems, and telecom or networking equipment. It provides DC-DC voltage regulation for these systems.

DNA stocks XLSEMI parts in Voltage Regulators for power-conversion designs. Browse this adjustable buck converter and related regulation components for your next build. Check other Voltage Regulators that we have in stock

Indian electronics buyers can contact DNA if they cannot find a part. We support imports and both retail and bulk orders. Ask us about related items such as sensors, crystals, relays, LCDs, and development modules. Contact Us

Features of XLSEMI XL2576S-ADJE1 Adjustable PWM Buck DC/DC Converter

Adjustable-output step-down voltage regulation
Fixed-frequency PWM operation
Internal frequency compensation
Built-in current-limit and thermal-shutdown functions
Enable pin supports on/off control

Specifications of XLSEMI XL2576S-ADJE1 Adjustable PWM Buck DC/DC Converter

Operating input voltage: 4.5 V to 40 V
Output voltage adjustment range: 1.23 V to 37 V
Output-current capability: 3 A
Switching frequency: 52 kHz typical, 40 kHz minimum and 64 kHz maximum (DC parameters at Ta = 25 °C)
Maximum duty cycle: 100% (VFB = 0 V)
Minimum dropout: 1.5 V
Operating junction temperature: -40 °C to 125 °C
Package: TO263-5L, 5 pins

Applications of XLSEMI XL2576S-ADJE1 Adjustable PWM Buck DC/DC Converter

LCD monitors and LCD TVs
Digital photo frames
Set-top boxes
ADSL modems

Package Includes

1 X XLSEMI XL2576S-ADJE1 Adjustable PWM Buck DC/DC Converter

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
