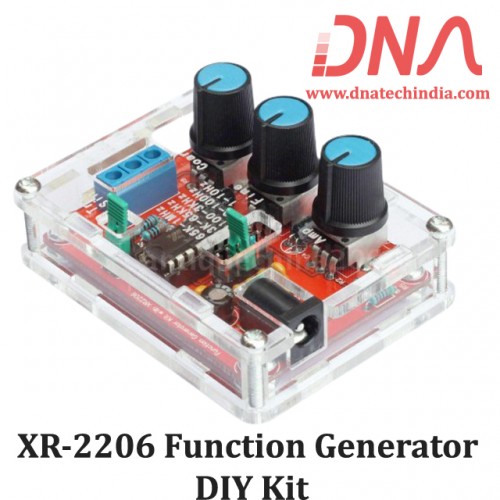

XR-2206 Function Generator DIY Kit


Write a review | 1 reviews

  • Stock: 1

    Availability: InStock priceValidUntil: 2026-05-27

  • SKU: 1037 | DAA744

Availability: InStock priceValidUntil: 2026-05-27

  • Rs. 507.40 (inc GST)
    Rs.430.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

XR-2206 Function Generator DIY Kit

This is a High Quality XR-2206 Based Do it Yourself (DIY) Kit function Generator Kit. Function Generator is an essential laboratory equipment.

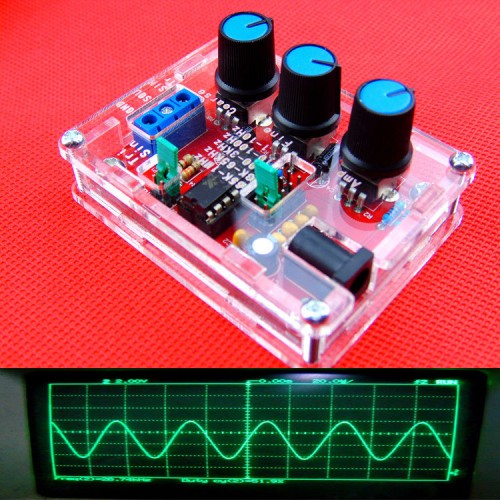

Function Generator is capable of producing high quality sine, square and triangle waveforms of high-stability and accuracy. The output waveforms can be both amplitude and frequency modulated. Coarse frequency adjustment is accomplished using 4-DIP switch for the following four frequency ranges; (1) 1Hz-100Hz, (2) 100Hz-20KHz, (3) 20KHz-1MHz, (4) 150KHz-2MHz.

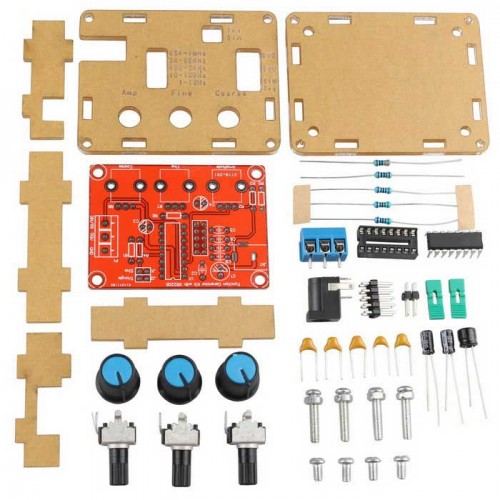

Frequency output can be fine tuned using P1 and P2 potentiometers. The kit includes output that can be connected to our 60MHz Counter kit to measure output frequency. 1Hz - 2MHz XR2206 Function Generator kit includes premium quality components, including Audio Grade Gold Capacitors, Gold Plated RCA Connector, WIMA Capacitors, 1% Metal Film Resistors and premium quality PCB with red solder mask.

We have Various sizes of Modules. Check out our complete collection of Modules.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Specifications:

  • Voltage supply : 9~12V DC Input

  • Waveforms : Square, Sine & Triangle

  • Impedance : 600 Ohm + 10%

  • Frequency : 1Hz~1MHz

SINE wave:

  • Amplitude : 0~3V at 9V DC input

  • Distortion : Less than 1% (at 1kHz)

  • Flatness : +0.05dB 1Hz~100kHz

SQUARE wave:

  • Amplitude : 8V (no load) at 9V DC input

  • Rise Time : Less than 50ns (at 1kHz)

  • Fall Time : Less than 30ns (at 1kHz)

  • Symmetry : Less than 5% (at 1kHz)

TRIANGLE wave:

  • Amplitude : 0~3V at 9V DC input

  • Linearity : Less than 1% (up to 100kHz) 10mA
