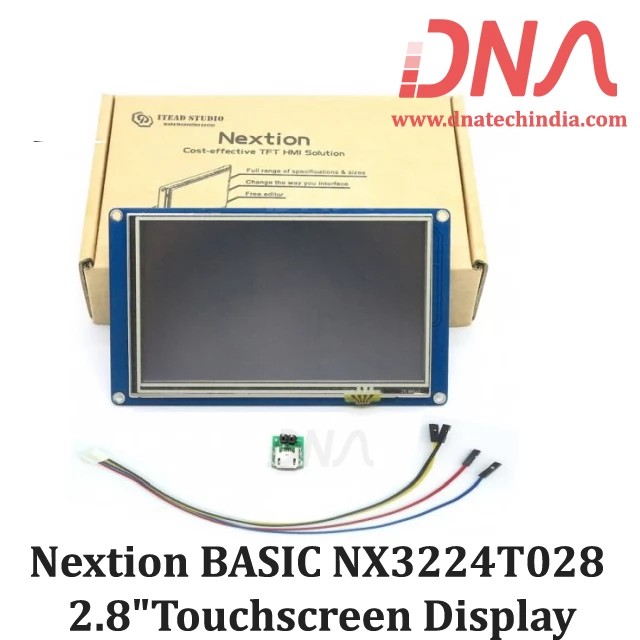

Nextion BASIC NX3224T028 2.8" Display

  • Brand: ITead
  • Product Code: 1646
  • Availability: 3
  • Price :

    Rs.2,181.82 (inc GST)

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at"

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

Nextion NX3224T028 - Generic 2.8 inch HMI LCD Touch Display

Nextion 2.8" Basic Resistive Touch TFT Display

Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design.

Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.It's easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART.

NX3224T028 is a powerful 2.8'' HMI, which is member of Nextion family. Features include: a 2.8" TFT 320x240 resistive touch screen display, 4M Flash, 2KByte RAM, 65k colors.

DNA Technology is official distributor for Nextion Display in IndiaCheck out various Nextion displays that we have in stock.

Features of Nextion NX3224T028  Basic 2.8 inch Touch Display

  • 320 x 240 Resolution
  • RGB 65K true to life colours
  • TFT screen with integrated resistive touch panel
  • 4 pin TTL serial interface
  • 4M Flash memory for User Application Code and Data
  • On board micro-SD card slot for firmware upgradation
  • Visual Area: 57.6mm(L)×43.2mm(W)
  • Adjustable Brightness: 0~180 nit, the interval of adjustment is 1%
  • 5 Volt 65mA power consumption
  • Compatible with Raspberry Pi A+, B+, Pi 2, Pi 3, Arduino.
  • Certificates: CE/EMC, RoHS

Package includes 1 x Basic Nextion 2.8'' display, a wire, a power supply test board.

Related Document

Nextion  Displays: Inexpensive Intelligent Touch Displays for Arduino, ESP8266 & others.
