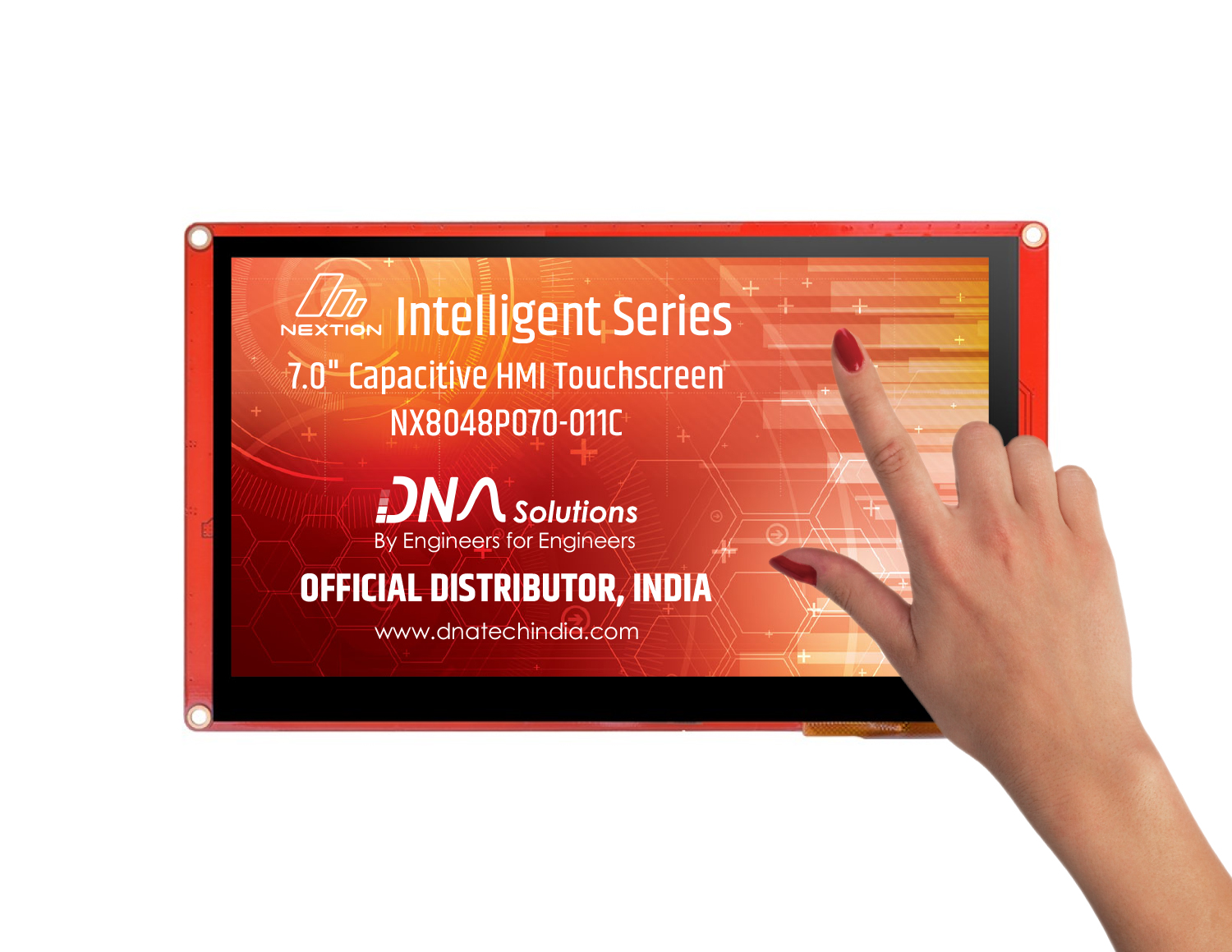

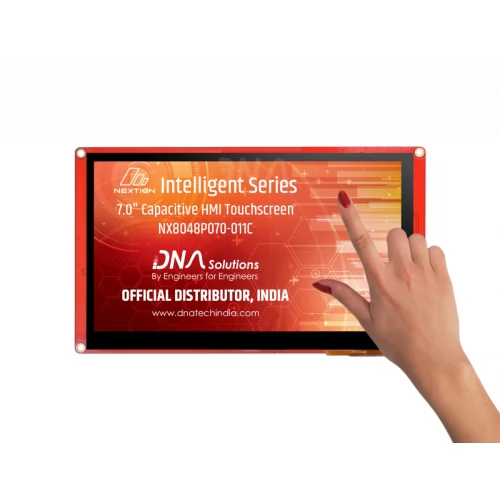

Nextion Intelligent NX8048P070-011C 7" Touchscreen Display

  • Stock: 1
  • Brand: ITead
  • SKU: 2125 | DAB504
  • Rs. 10,399.00 (inc GST)
    Rs.8,812.71 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

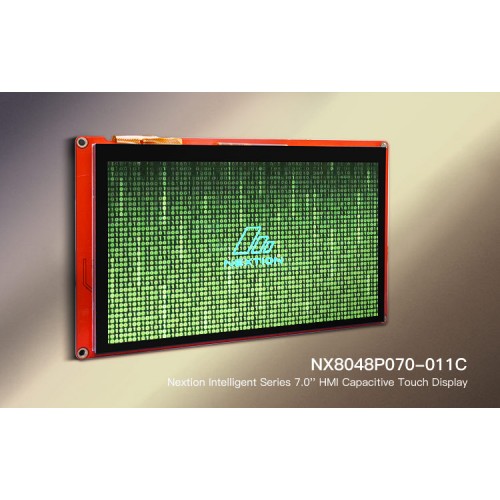

7" Nextion Intelligent Series HMI with Capacitive TouchScreen

NX8048P070-011C Nextion Intelligent series 7 inch Capacitive Touchscreen HMI Display

NX8048P070 011R is a 7" Nextion Display for Capacitive touchscreen HMI display. This display is from the Newly launched Intelligent series and is very easy to use and can be interfaced to your Microcontroller using simple UART port.

Nextion is a Human Machine Interface (HMI) solution combining an on board processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider etc.) and ASCII text based instructions for coding how components interact at display side. Nextion HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX ,GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text based instructions.

The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage and SRAM compared with Basic Series and Enhanced Series. What’s more and new? The audio, video and animation play functions enriches user’s project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move and Drag . etc.

You can develop the HMI GUI project via the free latest Nextion Editor software ver 0.58 or above, the easy Drag-and-Drop components and simple ASCII text based instructions will dramatically reduce your HMI project development workloads.

Hardware Features  For NX8048P070-011C

  • NX8048P070-011C(7.0'' IPS RGB 65K capacitive touchscreen)
  • Onboard MCU 200MHz and up to 128MB for HMI project
  • Built-in RTC,EEPROM, 8 digital GPIOs (2 PWM capable)
  • 4 pins (+5V, TX, RX, GND) TTL serial interface
  • 300 nit Brightness with 1% interval adjustment
  • Audio interface
  • CE and RoHS Compliant
  • Model: NX8048P070-011C(HMI Capacitive Touch Display)

Software  Features For NX8048P070-011C

  • Support audio resource.
  • Support video resource.
  • Support PNG picture resource.
  • Componant Transparncy attribute.
  • Support Animation  resource.
  • Componant  and page loading effect.

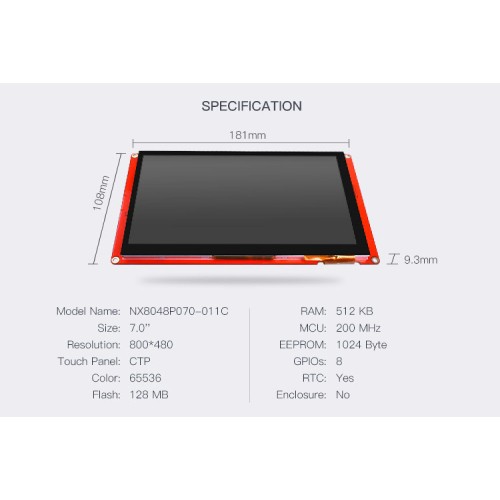

ADDITIONAL INFORMATION For NX8048P070-011C

  • Display Resolution : 800 x 480
  • Display  Interface : Serial
  • Screen Type : Touch Screen
  • Display Controller : No
  • TFT display interface : N/A
  • Display Size : 7.0”
  • Board Size : 81mmx108mmx9.3mm
  • Expand : SD Card  Socket/Touch Screen
  • Weight :  430 g

In The Box

  • NX8048P070-011C HMI Display*1
  • XH2.54 4P Wire*1
  • Power Supply Test Board*1

NX8048P070-011C Certification and Documents

Nextion Technical Support
