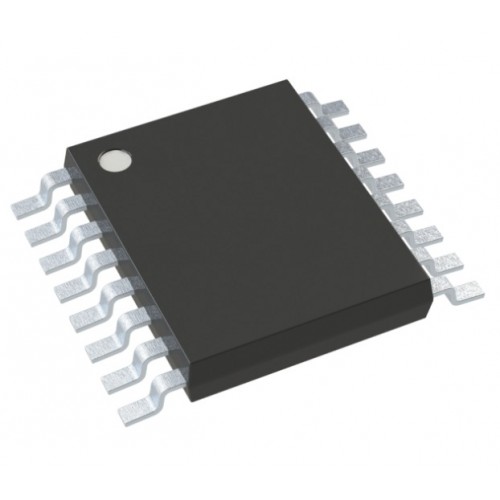

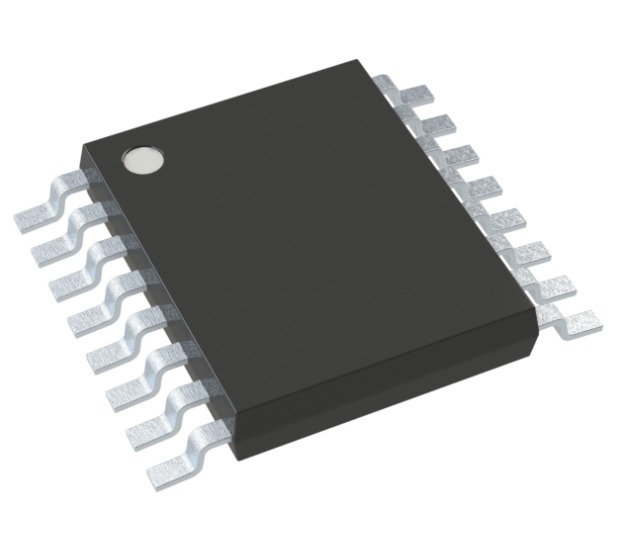

Product Images are shown for illustrative purposes only and may differ from actual product.

NEXPERIA XS3A4052PWJ ANALOGUE SW, DP4T, -40 TO 125DEG C

Write a review | 0 reviews

Stock: 1
Availability: InStock priceValidUntil: 2026-08-23
SKU: 8075 | DAH128

Rs. 67.04 (inc GST)
Rs.56.82 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

Nexperia XS3A4052PWJ Analog Switch IC

Nexperia XS3A4052PWJ DP4T switch for analog multiplexing with wide supply range and low power consumption.

The Nexperia XS3A4052PWJ Analog Switch IC is ideal for analog and digital multiplexing. It operates efficiently from -40°C to +125°C, making it suitable for various industrial and consumer applications in India. Its wide supply voltage range from 1.4 V to 4.3 V meets diverse system needs. With features like break-before-make switching and high noise immunity, this switch ensures reliable performance in challenging environments.

The Nexperia XS3A4052PWJ also boasts low power consumption, thanks to its CMOS technology. It exceeds 100 mA latch-up performance per JESD78 Class II Level A standards. This makes it a dependable choice for sensitive applications such as audio routing, communication systems, and medical equipment. Explore how the Nexperia XS3A4052PWJ Analog Switch IC can enhance your designs.

For testing and measurement equipment, this switch offers excellent bandwidth and low ON resistance. Its compact 16-TSSOP package allows for easy integration into various electronic projects. Trust the Nexperia XS3A4052PWJ for your analog switching needs.

Explore our range of reliable MISC ANALOG IC's from Nexperia at DNA. Find the perfect analog switch and enhance your projects. Check other "MISC ANALOG IC's" that we have in stock.

If you need specific electronic components, DNA can assist. We can help you find or import parts like Analog ICs, Transistors, Inductors, and more. Contact Us.

Features of Nexperia XS3A4052PWJ Analog Switch IC

Wide supply voltage range
Break-before-make switching
High noise immunity
Low power consumption
Latch-up performance exceeds 100 mA

Specification of Nexperia XS3A4052PWJ Analog Switch IC

Switch configuration: Dual-pole quad-throw (DP4T)
Control inputs: Enable (E), Select inputs (S0, S1)
Switch voltage range: 0 V to V
ON resistance flatness: 0.13 Ω
Bandwidth (-3dB): 25 MHz
Charge injection: 15 pC
Operating temperature range: -40°C to +125°C
Package: 16-TSSOP

Applications of Nexperia XS3A4052PWJ Analog Switch IC

Analog sensor monitoring
Audio routing/switching
Communication systems
Test and measurement equipment
Medical equipment

Package Includes

1 X Nexperia XS3A4052PWJ Analog Switch IC

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
