Product Images are shown for illustrative purposes only and may differ from actual product.

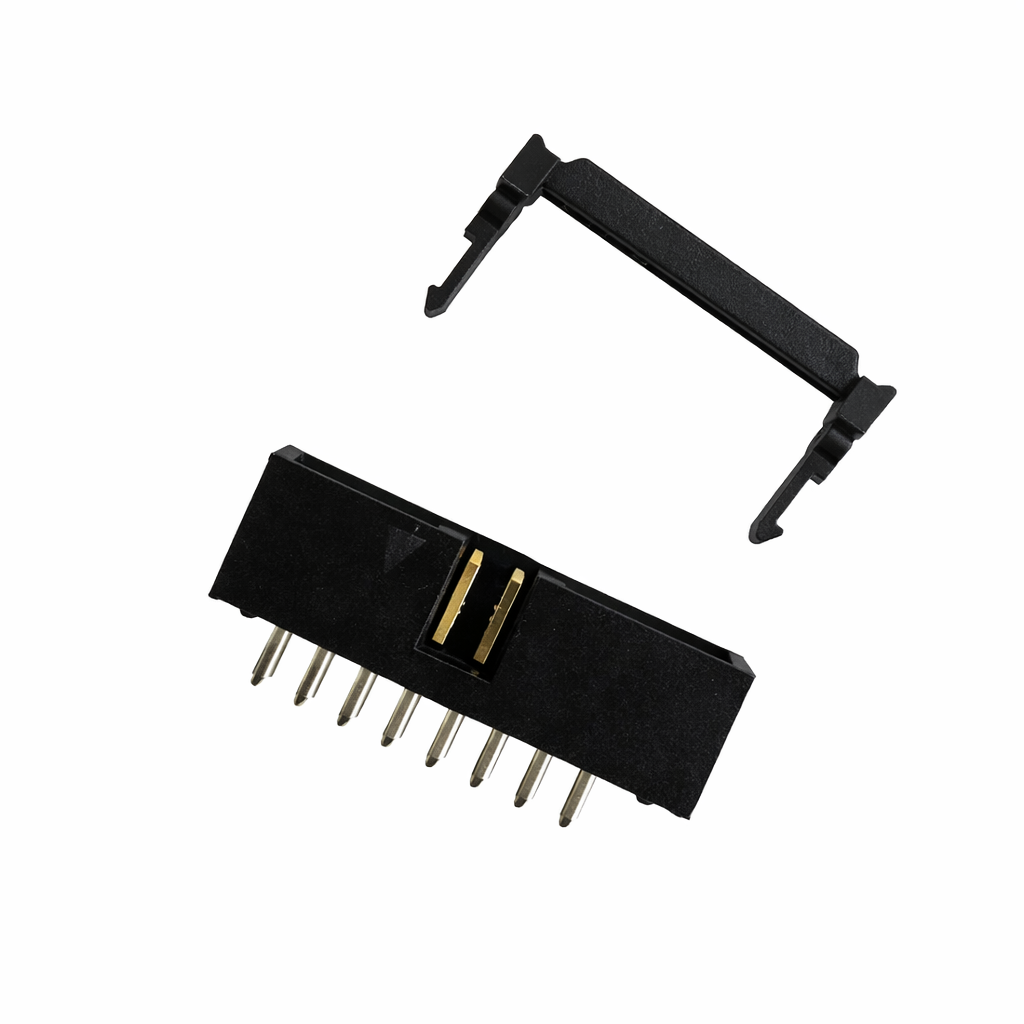

16 Pin Box Header Straight Connector


Write a review | 0 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-11-02

  • Brand: Generic
  • SKU: 10499 | DAC895

Availability: NotInStock priceValidUntil: 2026-11-02

  • Rs. 4.25 (inc GST)
    Rs.3.60 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

16 Pin Box Header Straight Connector

16-pin box header straight connector for PCB mounting; IDC system compatible; ideal for flat ribbon cable mass termination.

The 16-Pin Box Header Straight Connector is designed for vertical mounting on PCBs. This shrouded male connector is part of the IDC (Insulation-Displacement Contact) system. It works seamlessly with female IDC socket connectors, making it perfect for mass termination of flat ribbon cables. Its robust design ensures reliable electrical connections and efficient signal transmission.

With a focus on durability and ease of use, the 16-Pin Box Header Straight Connector simplifies your wiring tasks. It is an essential component in various electronic applications, ensuring a secure and stable connection. The connector is suitable for both commercial and DIY projects, providing flexibility for various electronic setups.

Choose the 16-Pin Box Header Straight Connector for your next project. Its compatibility with IDC systems makes it an optimal choice for connecting flat ribbon cables, enhancing the overall performance of your electronic devices.

Explore a wide range of high-quality Connectors and Cables at DNA. The Connectors and Cables Brand offers reliable solutions for all your electronic needs. Check other "Connectors and Cables" that we have in stock.

If you are searching for specific electronic components, reach out to us. We can import items not available and support retail and bulk orders. Explore related products like Connectors, Development Boards, HMI Displays, and more. Contact Us.

Features of 16 Pin Box Header Straight Connector

  • 16 pins
  • Shrouded male design
  • Vertical PCB mounting
  • IDC system compatible
  • Ideal for flat ribbon cables

Specification of 16 Pin Box Header Straight Connector

  • 16 pins
  • Male connector
  • Shrouded design
  • Vertical mounting
  • IDC system compliant

Applications of 16-Pin Box Header Straight Connector

  • PCB connections
  • Mass termination
  • Flat ribbon cable assembly
  • Electronic device integration
  • DIY electronics projects

Related Links for 16 Pin Box Header Straight Connector

Package Includes

  • 1 X 16 Pin Box Header Straight Connector
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
