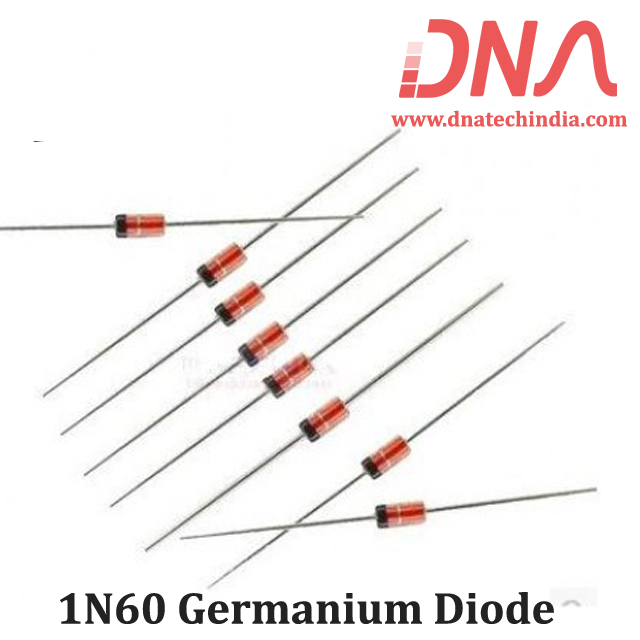

1N60 Germanium Diode

  • Stock: 35

    Availability: InStock priceValidUntil: 2026-12-19

  • SKU: 1786 | DAA347

Availability: InStock priceValidUntil: 2026-12-19

  • Rs. 9.44 (inc GST)
    Rs.8.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

1N60 Germanium Diode

1N60 is a germanium diode with very low reverse current and ultra high switching characteristics.
Buy various Diode from DNA.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features Of 1N60 Germanium Diode

  • Metal silicon junction, majority carrier conduction
  • High current capability, Low forward voltage drop
  • Extremely low reverse current lR
  • Ultra speed switching characteristics
  • Small temperature coefficient of forward characteristics
  • Satisfactory Wave detection efficiency
  • For use in RECORDER, TV, RADIO, TELEPHONE as detectors, super high speed switching  circuits, small current rectifier

Mechanical Data

  • Case : DO-35 glass case
  • Polarity : Color band denotes cathode end
  • Weight : Approx. 0.13 gram

Maximum Ratings Of 1N60 Germanium Diode

  • Maximum Repetitive Peak Reverse Voltage (VRRM)50 v
  • Maximum Average Forward Rectified Current (IF(AV)) 50mA
  • Maximum Instantaneous Forward Voltage (VF) 1.0 v
  • Maximum Reverse Leakage(VR) 20
  • Typical Thermal Resistance, Juncion to Ambient (RthJA) 250
  • Operating Temperature range (TJ) -55 to +70
  • Storage Temperature Range (TSTG) -55 to +100
