SMAJ10CA TVS Diode (Vishay)

SMAJ10CA TVS Diode (Vishay)

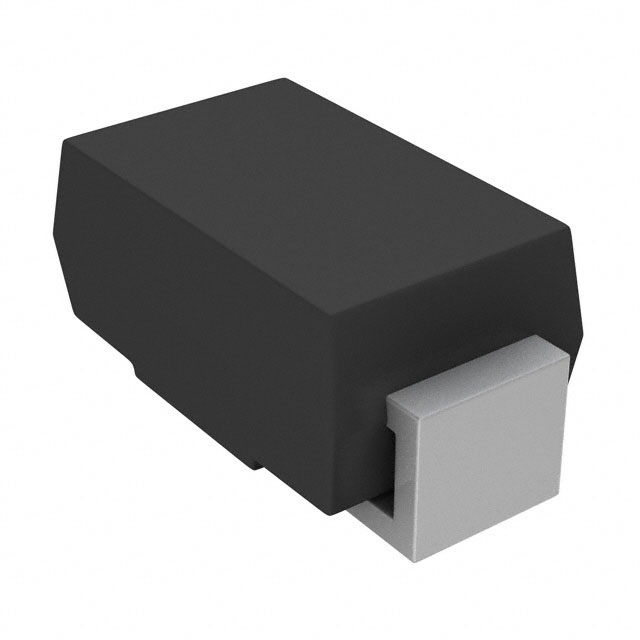

The SMAJ10CA TVS Diode (Vishay) is a surface-mount Transient Voltage Suppression (TVS) diode designed to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. The bidirectional device has a standoff voltage of 10V and provides robust clamping capability, making it ideal for protecting power supply lines and data lines. It is compliant with RoHS and features a fast response time and excellent clamping voltage characteristics. The SMAJ10CA is housed in a compact SMA (DO-214AC) package, suitable for automated assembly and reflow soldering.

DNA solutions, Nashik has various types of TVS Diode's. Check out our complete collection of TVS Diode's.

Features of SMAJ10CA TVS Diode (Vishay)

• Bidirectional TVS diode

• Standoff voltage of 10V

• Clamping voltage: 17V (typical)

• Peak pulse current: 23.5A

• Fast response time: < 1ps from 0V to V_BR

• Compact SMA (DO-214AC) package

Specifications of SMAJ10CA TVS Diode (Vishay)

• Type: Bidirectional

• Stand-off voltage: 10V

• Breakdown voltage: 11.1V to 12.3V

• Clamping voltage: 17V

• Peak pulse current (I_PP): 23.5A

• Package: SMA (DO-214AC)

• Response time: < 1ps

Applications of SMAJ10CA TVS Diode (Vishay)

• Protection of power lines and data lines

• Consumer electronics and telecom equipment

• Industrial control circuits

• Automotive electronic systems

• Sensitive microcontroller and logic circuit protection

Package Includes

      1 x SMAJ10CA TVS Diode (Vishay)
